Why Is the S13 Single Phase Oil Immersed Electrical Transformer a Smarter Choice for Efficient Power Distribution

Article Summary: The S13 Single Phase Oil Immersed Electrical Transformer is designed to deliver efficient, stable, and long-lasting power distribution for residential, rural, commercial, and renewable energy applications. Lugao Power combines low-loss core technology, oil-immersed cooling, a fully sealed corrugated tank, robust copper windings, and comprehensive testing to provide a practical transformer solution for modern single-phase distribution networks.

Table of Contents

• What Is an S13 Single Phase Oil Immersed Electrical Transformer?
• Why Does the S13 Series Improve Transformer Efficiency?
• What Are the Key Features of the S13 Transformer?
• What Are the Typical S13 Transformer Specifications?
• How Is the S13 Transformer Manufactured?
• Where Can the S13 Transformer Be Used?
• How Should You Select the Right S13 Transformer?
• Why Choose Lugao Power as an S13 Transformer Supplier?
• Frequently Asked Questions About S13 Transformers
• Conclusion

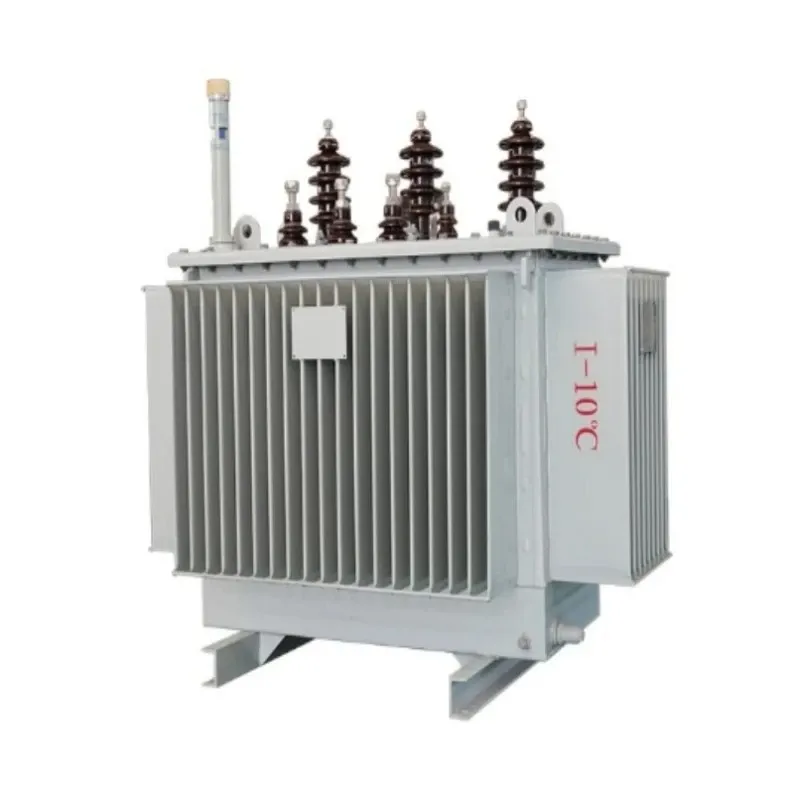

What Is an S13 Single Phase Oil Immersed Electrical Transformer?

An S13 Single Phase Oil Immersed Electrical Transformer is a distribution transformer specifically designed for single-phase electrical networks. It uses insulating oil as both a dielectric medium and cooling medium, allowing the transformer to efficiently transfer electrical energy while controlling heat generated during operation.

Compared with conventional distribution transformer designs, the S13 series focuses strongly on reducing no-load losses and improving long-term operating efficiency. The design can use high-permeability cold-rolled grain-oriented silicon steel with a stepped lap joint core, while an amorphous alloy core can also be selected for applications where further reduction of no-load losses is required.

According to the product information provided by Lugao Power, the transformer is suitable for applications including rural electrification, residential pole-mounted distribution, light commercial buildings, renewable energy systems, and temporary construction power. Its compact structure also makes transportation and outdoor installation easier.

Why Does the S13 Series Improve Transformer Efficiency?

Transformer efficiency is determined not only by rated capacity but also by how effectively the core, windings, insulation system, and cooling structure work together. A transformer can remain energized for thousands of hours every year, meaning that even relatively small reductions in no-load losses can produce meaningful energy savings throughout its service life.

The S13 design addresses this issue through several engineering measures:

• High-permeability magnetic core: Reduces magnetic losses during continuous operation.
• Stepped lap joint construction: Helps optimize magnetic flux distribution and reduce core losses.
• Optional amorphous alloy core: Provides an alternative for projects requiring particularly low no-load losses.
• Oxygen-free copper windings: Provide high electrical conductivity and help minimize resistive losses.
• Oil-immersed cooling: Transfers heat away from active components efficiently.

Lugao Power states that the S13 series can achieve no-load losses up to approximately 30% lower than the S11 series, while an optional amorphous alloy core can further reduce no-load losses compared with conventional silicon-steel core designs.

What Are the Key Features of the S13 Transformer?

The performance of a distribution transformer depends heavily on its mechanical construction as well as its electrical characteristics. The S13 Single Phase Oil Immersed Electrical Transformer integrates several features intended to support reliable outdoor and distribution-network operation.

Low-Loss Core Design

The core uses high-permeability grain-oriented silicon steel with a 45-degree stepped lap joint structure. This construction helps control magnetic losses and contributes to improved operating efficiency. An amorphous alloy core is available as an optional solution when extremely low no-load losses are a priority.

Fully Sealed Corrugated Tank

The corrugated tank performs several functions simultaneously. Its expanded surface area supports heat dissipation, while its flexible structure accommodates thermal expansion of the insulating oil. Because the tank is fully sealed, the insulating oil is isolated from direct atmospheric exposure, helping limit moisture ingress and oil oxidation.

Stable Oil-Immersed Cooling

Insulating oil provides both electrical insulation and thermal management. Heat generated by the core and windings can be transferred through the oil toward the tank walls and dissipated into the surrounding environment.

Strong Short-Circuit Capability

The winding structure is designed to provide improved mechanical strength during fault conditions. The low-voltage winding can use foil or helical construction with longitudinal oil ducts, supporting both cooling performance and resistance to mechanical forces generated during short circuits.

Low-Noise Operation

Optimized core construction and mechanical assembly help reduce vibration and operating noise, making the transformer suitable for residential communities and other locations where acoustic performance matters.

What Are the Typical S13 Transformer Specifications?

Technical specifications should always be confirmed according to the actual project design, grid requirements, applicable standards, and installation environment. The following table presents typical values published for the S13 transformer configuration using an 11 kV high-voltage side.

The published configuration supports a tapping range of ±5% or ±2×2.5%, while 50 Hz and 60 Hz frequency options are available. Amorphous alloy core construction can also be specified when further loss reduction is required.

For procurement projects, buyers should evaluate rated capacity, primary and secondary voltage, impedance, frequency, installation method, environmental conditions, insulation requirements, and applicable national or international standards before placing an order.

How Is the S13 Transformer Manufactured?

Transformer reliability starts with manufacturing precision. The S13 transformer production process involves several critical stages, each of which influences final electrical and mechanical performance.

1. Core processing: Magnetic steel is precision cut and assembled using a stepped lap joint structure.
2. Winding: High-voltage and low-voltage windings are manufactured using oxygen-free copper conductors.
3. Insulation treatment: The oil-paper insulation system is vacuum dried to reduce residual moisture and air.
4. Tank manufacturing: Corrugated panels are formed and assembled into a sealed tank structure.
5. Oil filling: Insulating oil is introduced under controlled conditions to support dielectric and cooling performance.
6. Electrical testing: Routine and relevant type tests are performed before shipment.

According to Lugao Power's product information, testing can include no-load loss and load loss measurements, short-circuit impedance testing, induced over-voltage withstand testing, partial discharge testing, and lightning impulse testing. These procedures help verify electrical performance and product consistency before delivery.

Where Can the S13 Transformer Be Used?

The compact construction and single-phase configuration make the S13 transformer particularly suitable for decentralized distribution applications.

• Rural electrification: Supplies reliable electricity to villages, farms, agricultural facilities, and remote communities.
• Residential distribution: Supports pole-mounted power distribution for homes and residential communities.
• Light commercial buildings: Suitable for shops, offices, rural commercial centers, and similar loads.
• Renewable energy systems: Can be integrated into small-scale solar, micro-hydro, and distributed energy systems.
• Temporary power: Its relatively compact structure facilitates deployment for selected construction and temporary power applications.

For renewable energy projects, transformer selection should consider bidirectional power flow, voltage variation, protection coordination, harmonic conditions, and the requirements of the local distribution network rather than relying only on rated capacity.

How Should You Select the Right S13 Transformer?

Choosing a transformer is a system-engineering decision rather than simply a product-size decision. Before purchasing an S13 Single Phase Oil Immersed Electrical Transformer, project engineers and procurement teams should confirm several technical parameters.

For customized projects, buyers should provide the supplier with the required voltage level, rated capacity, frequency, installation environment, expected load characteristics, and applicable standards. This allows the engineering team to prepare a configuration that is appropriate for the actual network.

Why Choose Lugao Power as an S13 Transformer Supplier?

Lugao Power focuses on power transmission and distribution equipment and provides transformer solutions for utility companies, EPC contractors, industrial facilities, and renewable energy projects. Its manufacturing capabilities include core cutting, winding, vacuum drying, assembly, and electrical testing processes.

The company states that its S13 transformers are produced under an ISO 9001 quality management system and can be supplied according to IEC, ANSI, IEEE, GB, and other applicable requirements. OEM and ODM customization is also available for voltage, capacity, frequency, and other project specifications.

Key Supplier Advantages

• Professional transformer manufacturing experience
• ISO 9001 quality management system
• IEC, ANSI, IEEE, and GB standard compatibility
• Routine and type testing capabilities
• OEM and ODM customization
• Low-loss transformer design options
• Technical support before and after sales
• 5-year warranty and lifetime technical support according to the published product information

For international procurement, selecting a manufacturer that can provide technical documentation, test reports, customized electrical parameters, and responsive engineering support can significantly simplify project integration and acceptance.

Frequently Asked Questions About S13 Transformers

What is the main advantage of an S13 Single Phase Oil Immersed Electrical Transformer?

The primary advantage is its focus on improved energy efficiency through reduced no-load losses, combined with oil-immersed cooling and a fully sealed structure. This makes it well suited to continuous single-phase distribution applications.

Is the S13 transformer suitable for outdoor installation?

Yes. Its fully sealed corrugated tank and compact structure are designed for outdoor distribution applications, including pole-mounted installations. The actual installation should still follow the applicable electrical, environmental, clearance, and safety requirements.

What core materials are available?

The standard design uses high-permeability cold-rolled grain-oriented silicon steel. An amorphous alloy core can also be selected for applications requiring further reduction in no-load losses.

What voltage and frequency configurations are available?

The published specifications include an 11 kV high-voltage side with 230 V or 400 V low-voltage configurations, depending on rated capacity. Tapping options include ±5% or ±2×2.5%, while 50 Hz and 60 Hz versions are available. Customized configurations should be confirmed with the manufacturer.

How long can an S13 transformer operate?

Lugao Power states that the S13 transformer is designed for a service life of no less than 30 years under specified normal operating conditions. Actual service life depends on loading, ambient conditions, installation quality, protection, maintenance, and operating practices.

Can Lugao Power provide customized S13 transformers?

Yes. Lugao Power states that it supports OEM and ODM manufacturing and can customize voltage, capacity, frequency, and applicable international standards according to project requirements.

Conclusion

The S13 Single Phase Oil Immersed Electrical Transformer combines low-loss magnetic technology, efficient oil cooling, copper windings, a fully sealed corrugated tank, and robust electrical testing to address the practical demands of modern single-phase distribution systems. Its applications extend from rural electrification and residential distribution to light commercial facilities and selected renewable energy projects.

For buyers comparing transformer manufacturers in China, the most important considerations should include efficiency, rated capacity, voltage ratio, core material, insulation system, manufacturing quality, testing capability, customization options, warranty, and technical support. With its published S13 transformer configuration, customization capability, and engineering support, Lugao Power can provide a practical starting point for projects requiring reliable single-phase power distribution equipment. If you are planning a new distribution project or need a customized transformer specification, contact us to discuss your voltage, capacity, installation environment, and technical requirements with the engineering team.
