When evaluating qualified Switchgear suppliers for low-voltage distribution, engineering procurement teams frequently ask: Can a basic distribution board handle my facility's growing load demands and fault levels, or do I need the robust construction and selective protection of fully rated low voltage switchgear? The answer depends on load capacity, fault level requirements, and operational flexibility needs.
Low Voltage Switchgear is specifically designed for high-capacity industrial and commercial distribution, featuring robust metal-enclosed construction with drawable or fixed circuit breaker configurations. Unlike basic distribution boards that are limited to lower fault ratings and simpler configurations, low voltage switchgear can handle fault currents up to 50 kA or higher, supporting large motor loads, backup generators, and critical power systems. The modular construction enables easy expansion and reconfiguration as loads grow, making it the preferred choice for industrial plants, commercial complexes, and municipal infrastructure projects.
Lugao's Low Voltage Switchgear solutions feature either GGD (fixed), GCS (drawable), or MNS (modular) configurations, providing flexibility to match different application requirements. The robust busbar systems and high-quality circuit breakers ensure reliable operation under demanding conditions, while the comprehensive protection functions safeguard equipment and personnel from electrical faults.
Low Voltage Switchgear must withstand fault currents and coordinate protection across multiple distribution levels. Lugao Low Voltage Switchgear systems are engineered with high-fault withstand capabilities validated through rigorous testing: short-circuit withstand ratings up to 50 kA, temperature rise tests confirming thermal stability under full-load conditions, and mechanical endurance tests verifying thousands of operation cycles.
Protection coordination is critical in low-voltage distribution. Our switchgear features selective protection through time-current coordination between incoming, feeder, and sub-feeder breakers. This ensures that a fault on a downstream circuit is cleared by the nearest upstream breaker, minimizing the extent of power interruption and maintaining supply to unaffected loads. This selective coordination capability is essential for critical facilities where supply continuity is paramount.
Personnel safety is paramount in low-voltage switchgear, where exposure to live parts is more frequent due to maintenance and testing activities. Lugao Low Voltage Switchgear features robust metal-enclosed construction with fully compartmentalized sections. The busbar compartment is segregated from the breaker compartments, and the breaker compartments are segregated from cable entry zones, ensuring that personnel can access one section while others remain energized.
Constructed from corrosion-resistant steel with anti-corrosion surface treatments (≥2mm thickness for critical components), the housing withstands extreme ambient temperatures and high humidity. The IP4X protection rating provides effective resistance against solid particle ingress, ensuring reliable operation in industrial environments where dust and contaminants are present.
Lugao's ISO9001 and SGS-certified production workshop manufactures Low Voltage Switchgear in strict accordance with IEC 61439, GB, CE, and CCC international standards, supporting direct plug-and-play deployment without costly site modifications.

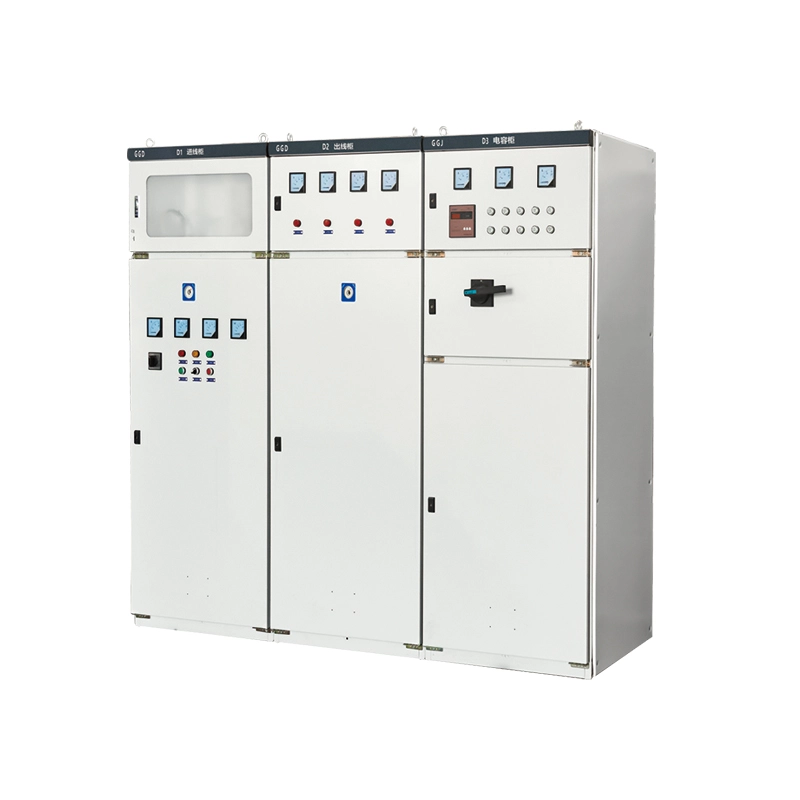

· GGD (Fixed Type): Economic, fixed-configuration switchgear with fixed-mounted circuit breakers. Suitable for applications where expansion requirements are limited and maintenance access is straightforward.

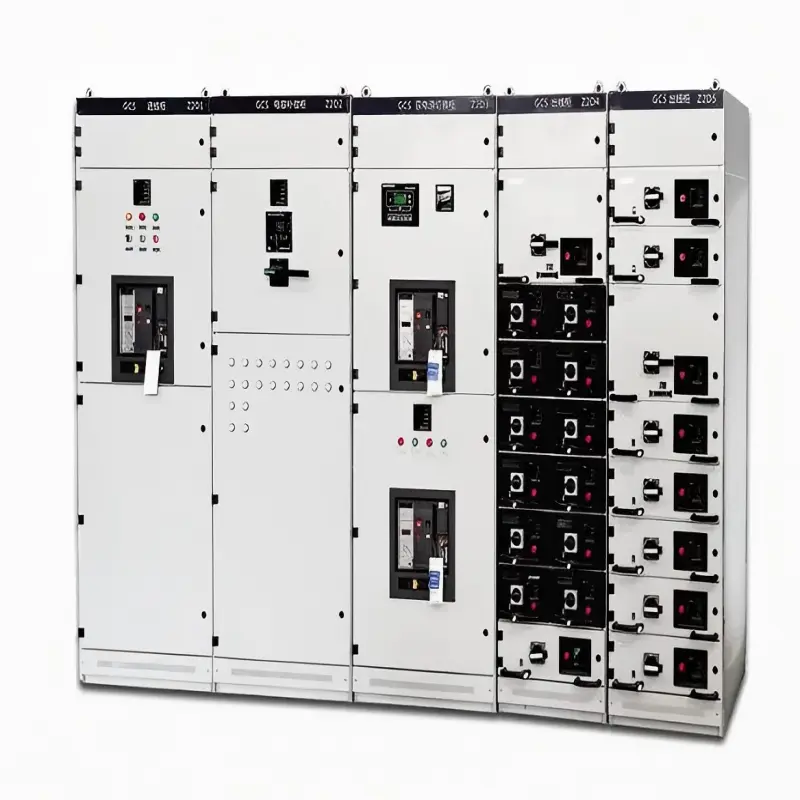

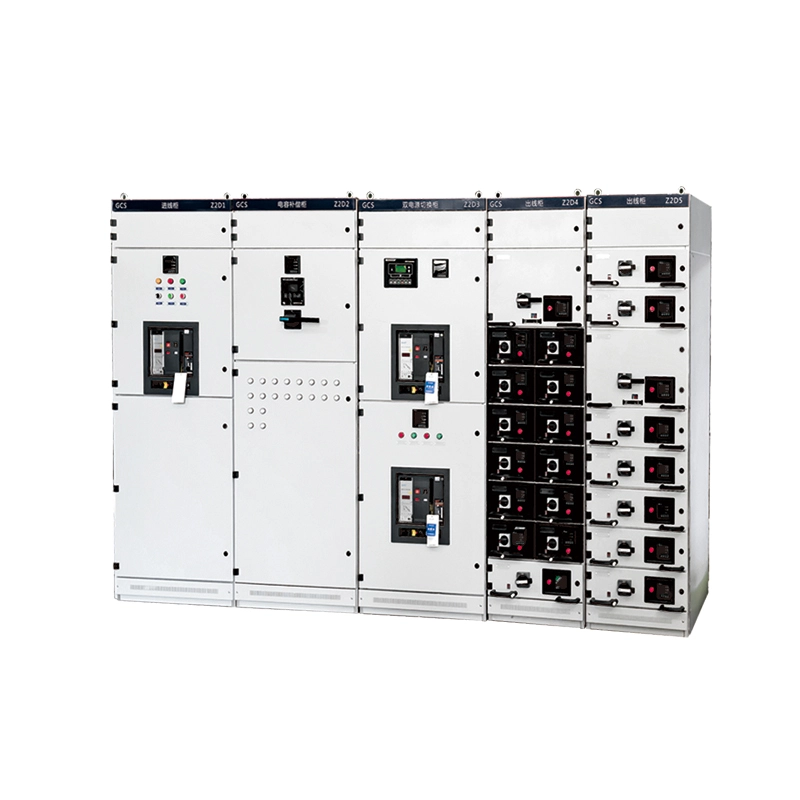

· GCS (Drawable Type): Drawable circuit breaker configurations with compartmentalized construction. Circuit breakers can be withdrawn for maintenance without de-energizing the main busbar, reducing downtime during servicing.

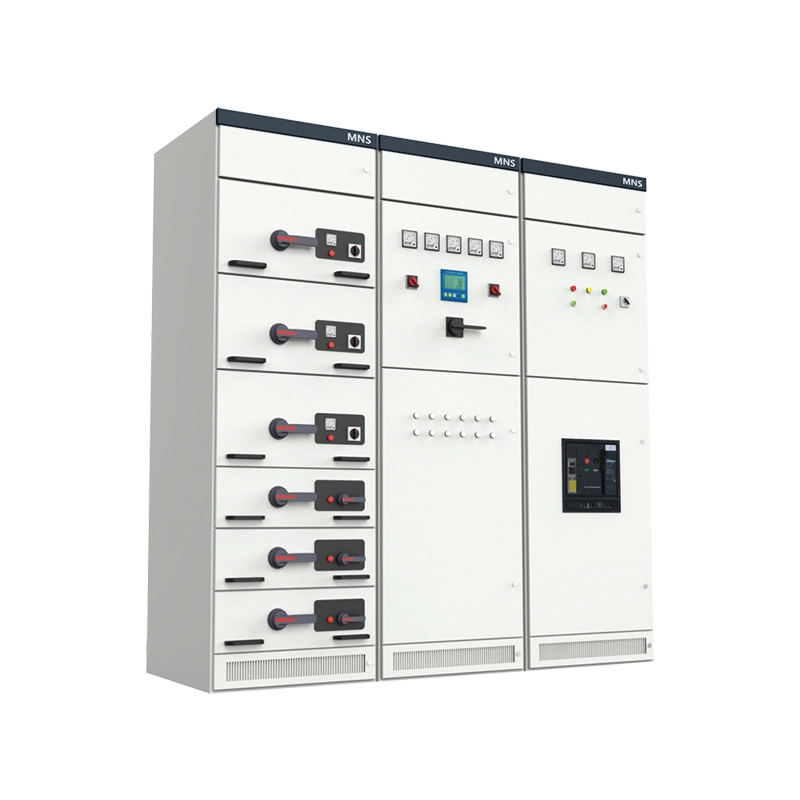

· MNS (Modular Type): Highly modular design with flexible configuration options. Supports easy expansion and reconfiguration as load requirements change, making it ideal for growing industrial facilities.
Lugao offers flexible internal configurations to match specific project requirements:
· Incoming Function: Main circuit breakers with protection relays, providing overall system protection and isolation.
· Outgoing Function: Feeder breakers for motor control centers, lighting distribution, and other power feeders.
· Reactive Compensation: Capacitor banks and controllers for power factor correction, reducing energy costs and improving system efficiency.
· Generator Changeover: Automatic transfer switches for emergency backup power systems.
For industrial plants and commercial complexes where loads are significant and future expansion is anticipated, low voltage switchgear with drawable or modular configurations offers the best long-term value. Lugao offers customized configuration options, including different breaker ratings, busbar arrangements, and protection schemes, to match specific project requirements. The comprehensive protection functions ensure reliable operation, while the modular design enables easy maintenance and future upgrades.
Experience Lugao's Low Voltage Switchgear manufacturing excellence firsthand:
