When utility engineers plan distribution networks in industrial parks and commercial complexes, they frequently ask: which substation configuration delivers superior serviceability and modular flexibility for growing load demands? Lugao Power Co., Ltd. answers this with our European Type Substation solutions, engineered with a room-based modular configuration that separates high-voltage switchgear, transformer, and low-voltage compartments within a single enclosure, prioritizing maintenance accessibility and operational flexibility for IEC-standard regions worldwide.
When evaluating qualified Box-Type Transformer Substation suppliers, engineering procurement teams consistently ask: Should we specify European or American design standards for our distribution network? The answer depends on application context, maintenance strategy, and regional grid preferences.

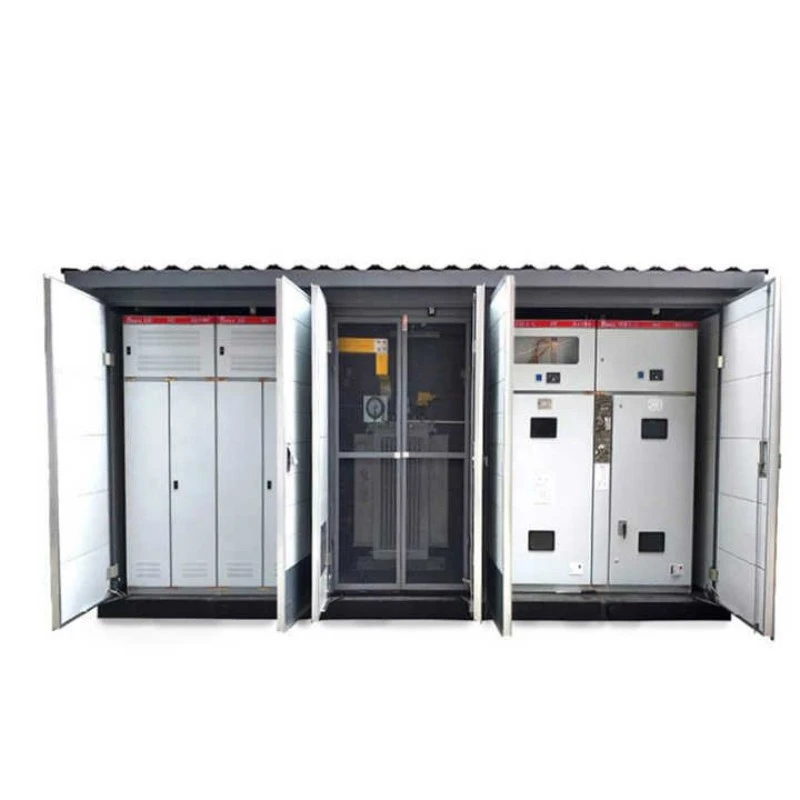

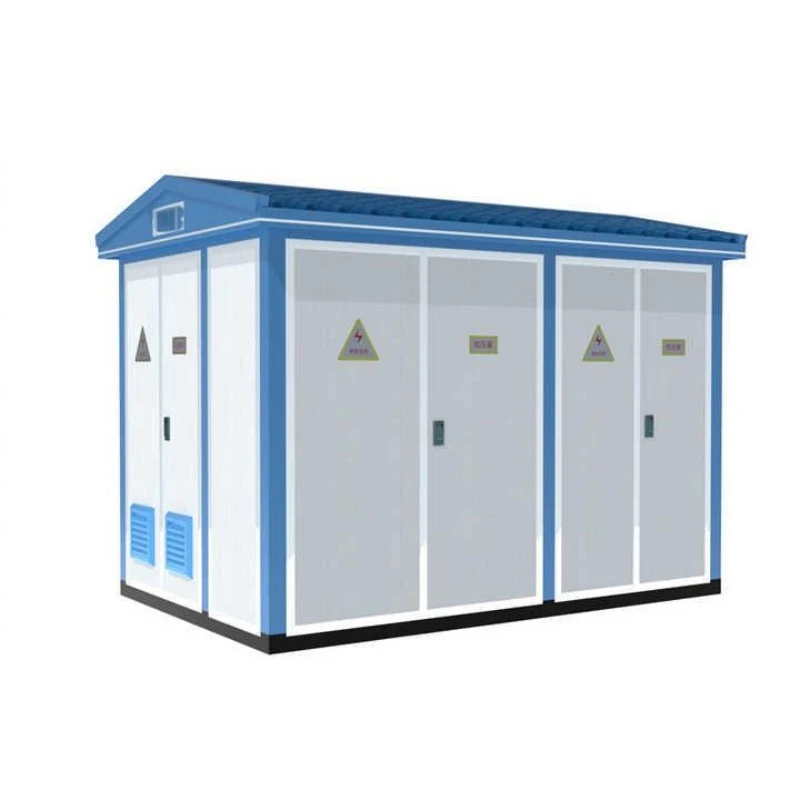

European-type substations adopt a distinctive room-based, modular configuration with separate high-voltage switchgear, transformer, and low-voltage compartments within a single enclosure. This design philosophy prioritizes serviceability and operational flexibility, accommodating both oil-immersed and dry-type transformers while providing ample working space for inspection and maintenance crews. This configuration is widely adopted in industrial parks, commercial complexes, and municipal infrastructure projects across IEC-standard regions where maintenance frequency is higher and service access is critical.
The modular room design enables independent access to each compartment, meaning maintenance personnel can service the switchgear section without de-energizing the transformer, or replace a faulty low-voltage breaker without disturbing high-voltage operations. This operational independence translates into reduced downtime, lower maintenance costs, and enhanced system availability for critical infrastructure.
European-type substations must withstand lightning surges, switching overvoltages, and continuous load-induced thermal stress across all three compartments. Lugao European Type Substations are engineered with high-dielectric foundations validated through rigorous testing: power frequency withstand at 42 kV for one minute and lightning impulse withstand at 75 kV on the high-voltage side, meeting or exceeding IEC 62271-202 standards. These thresholds protect internal transformer windings, switchgear components, and busbar systems from grid disturbances.
Thermal management is particularly critical in the enclosed room-based configuration. Our European-type units feature optimized ventilation pathways and heat-dissipation surfaces that actively channel heat away from critical components. The transformer compartment incorporates dedicated airflow channels that prevent localized hotspots, ensuring thermal stability even under continuous full-load operation. This thermal resilience extends transformer insulation life and reduces maintenance frequency for your Power Transformer investment.
Exposed to weather, dust, and accidental impacts, the substation enclosure serves as the first defense against environmental degradation. Lugao European-type substations achieve IP44 protection ratings, providing effective resistance against solid particle ingress and water splashes. Constructed from corrosion-resistant steel with anti-corrosion surface treatments (≥2mm thickness for critical components), the housing withstands extreme ambient temperatures, high humidity, and corrosive coastal atmospheres, ensuring structural integrity for decades of service.
The room-based modular design also allows for enhanced fire compartmentalization. Each compartment can be independently sealed with fire-resistant barriers, preventing fire propagation between sections and containing potential incidents within the originating room. This fire-safety feature is particularly valuable for building-integrated installations in commercial complexes and municipal infrastructure projects.
Distribution networks inevitably experience fault currents. A substation's ability to survive these events without internal deformation or busbar damage is non-negotiable. Lugao European Type Substations are tested for short-circuit withstand—example ratings include 20 kA RMS on the high-voltage side—with post-test inspections confirming busbar joint integrity and zero structural deformation. The modular room configuration, with its robust compartmentalization, actually enhances fault containment by physically separating sections, preventing fault propagation from one compartment to adjacent areas.
Lugao's ISO9001 and SGS-certified production workshop, equipped with professional assembly lines and full-power test bays, manufactures European Type Substations in strict accordance with IEC, GB, CE, and CCC international standards, supporting direct plug-and-play deployment without costly site modifications.
· 30kV / 35kV European Type Substation: Designed for utility distribution substations, wind farm collector systems, and heavy industrial zones requiring medium-voltage transformation with robust short-circuit withstand and low partial discharge levels. Features separate compartments for HV switchgear, transformer, and LV distribution.
· 24kV (20kV) Smart/Compact Box Substation: Equipped with intelligent modules on both HV and LV sides, enabling remote control, sensing, signaling, and regulation for state grid automation applications. Suitable for urban high-rise buildings, residential houses, and municipal infrastructure.
· 11kV / 10kV Distribution Substation: Ideal for commercial complexes, residential communities, and rural electrification projects. Features flexible transformer options including oil-immersed or dry-type units, eliminating conservator maintenance requirements and ensuring reliable operation in harsh outdoor environments.
Lugao offers flexible internal configurations to match specific project requirements:
· Transformer Type: Fully sealed oil-immersed (S9, S11, S13, SH15) or dry-type (SCB10, SCB11, SCBH15) options, accommodating fire-safety and environmental preferences.
· High-Voltage Switchgear: XGN15, HXGN17, or KYN28A cabinets with load switch or vacuum circuit breaker configurations, supporting ring network, terminal, or dual power supply modes.
· Low-Voltage Distribution: GGD, GCS, or MNS switchgear with incoming, outgoing, and reactive compensation functions, supporting panel-type or cabinet-mounted structures.
For industrial parks and commercial complexes where service accessibility and operational flexibility are paramount, European-type substations offer distinct advantages. The room-based modular design provides ample working space for maintenance crews, enabling efficient inspection, testing, and component replacement without disrupting adjacent operations. While the footprint is larger than American-type equivalents, the enhanced serviceability reduces long-term operating costs and improves system availability. Lugao offers customized footprint optimization, reducing overall ground area requirements by utilizing high-density switchgear and integrated designs while maintaining the service access benefits of the modular configuration.
Experience Lugao's European Type Substation manufacturing excellence firsthand:
