When protection relays fail to clear a fault within the critical 0.1-second window, the resulting arc flash can vaporize busbars and trigger catastrophic substation blackouts. Operating as a specialized, China-based Switchgear manufacturer, Lugao Power Co., Ltd. eliminates these distribution vulnerabilities through our IEC-certified, rigorously tested metal-enclosed switchgear systems. Since 2016, our ISO9001 and SGS-certified facility has delivered air-insulated and gas-insulated switchgear that provide utilities, EPC contractors, and industrial facilities with reliable, plug-and-play protection and control solutions, reducing on-site commissioning time by up to 50% .
How to Choose Between Air-Insulated and Gas-Insulated Switchgear for Your Project?
When evaluating qualified Switchgear suppliers, engineering procurement teams frequently ask: Should we specify AIS or GIS technology for our substation? The answer depends on available site area, environmental conditions, and long-term maintenance strategy.
Air-Insulated Switchgear (AIS) features a traditional, transparent structure with visible disconnection points and accessible busbars. This design prioritizes ease of inspection, straightforward maintenance, and cost efficiency. Lugao's AIS solutions, such as the 13.8kV metal-enclosed switchgear, are engineered with a robust steel frame, high-strength insulating materials, and copper busbars, ensuring reliable operation in standard substation environments where space is not severely constrained .
Gas-Insulated Switchgear (GIS), by contrast, adopts a compact, fully sealed enclosure filled with SF6 gas, offering exceptional dielectric strength in a fraction of the footprint. This design is ideal for urban underground substations, high-rise buildings, and industrial zones with limited real estate .
|
Design Type
|
Insulation Medium
|
Footprint
|
Typical Application
|
|
Air-Insulated (AIS)
|
Air / Vacuum
|
Larger footprint
|
Utility substations, industrial plants, commercial projects with ample space
|
|
Gas-Insulated (GIS)
|
SF6 Gas
|
Compact (up to 70% smaller)
|
Urban substations, indoor installations, harsh environments, space-constrained sites
|
Both designs share core advantages---factory pre-testing, modular construction, and rapid deployment---but the choice ultimately aligns with your local grid standards, available site area, and maintenance access requirements. Lugao offers both configurations with full customization, ensuring seamless integration regardless of regional project specifications.
How Does Lugao Validate Dielectric Integrity and Short-Circuit Withstand Capability?
Switchgear must withstand lightning surges, switching overvoltages, and the immense electromagnetic forces generated during grid faults. Lugao Switchgear systems are engineered with high-dielectric foundations validated through rigorous testing: power frequency withstand at 42 kV for one minute and lightning impulse withstand at 75 kV on the high-voltage side, meeting or exceeding IEC 62271-1 standards .
Short-circuit withstand capability is non-negotiable. Our switchgear is tested for short-circuit withstand ratings, with examples including 20 kA to 40 kA RMS on the high-voltage side. Post-test inspections confirm busbar joint integrity and zero structural deformation, assuring project engineers of system stability under the most demanding fault conditions .
What Structural Protections and Environmental Adaptations Are Integrated?
Exposed to weather, dust, and accidental impacts, the switchgear enclosure is the first defense against environmental degradation. Lugao switchgear achieves IP4X protection ratings for indoor units and higher ratings for outdoor installations, providing effective resistance against solid particle ingress and water splashes. Constructed from corrosion-resistant steel with anti-corrosion surface treatments (≥2mm thickness for critical components), the housing withstands extreme ambient temperatures, high humidity, and corrosive coastal atmospheres, ensuring structural integrity for decades of service .
What Configurations, Voltage Classes, and Capacities Can Lugao Supply?
Lugao's ISO9001 and SGS-certified production workshop, equipped with professional assembly lines and full-power test bays, manufactures Switchgear systems in strict accordance with IEC, GB, CE, and CCC international standards, supporting direct plug-and-play deployment without costly site modifications.
Voltage Classes & Capacity Ranges:
· 33kV / 40.5kV MV HV Switchgear: Designed for utility substations, wind farm collector systems, and heavy industrial zones requiring robust short-circuit withstand and low partial discharge levels. Available as KYN61-40.5 air-insulated or GIS configurations .
· 24kV / 13.8kV Medium Voltage Switchgear: Equipped with intelligent modules enabling remote control, sensing, and protection for state grid automation applications. Suitable for urban high-rise buildings, residential communities, and municipal infrastructure .
· 11kV / 12kV Distribution Switchgear: Ideal for commercial complexes, residential communities, and rural electrification projects. Features fixed or drawable designs with vacuum circuit breaker options .
Switchgear and Component Options:
Lugao offers flexible internal configurations to match specific project requirements:
· Circuit Breaker Type: Vacuum Circuit Breaker (VCB) for medium voltage applications, offering superior arc quenching and longer service life compared to other types . SF6 circuit breakers available for higher voltage applications requiring robust interrupting capability .
· Switchgear Cabinet Types: XGN15, HXGN17, or KYN28A cabinets with fixed or drawable designs, supporting ring network, terminal, or dual power supply modes .

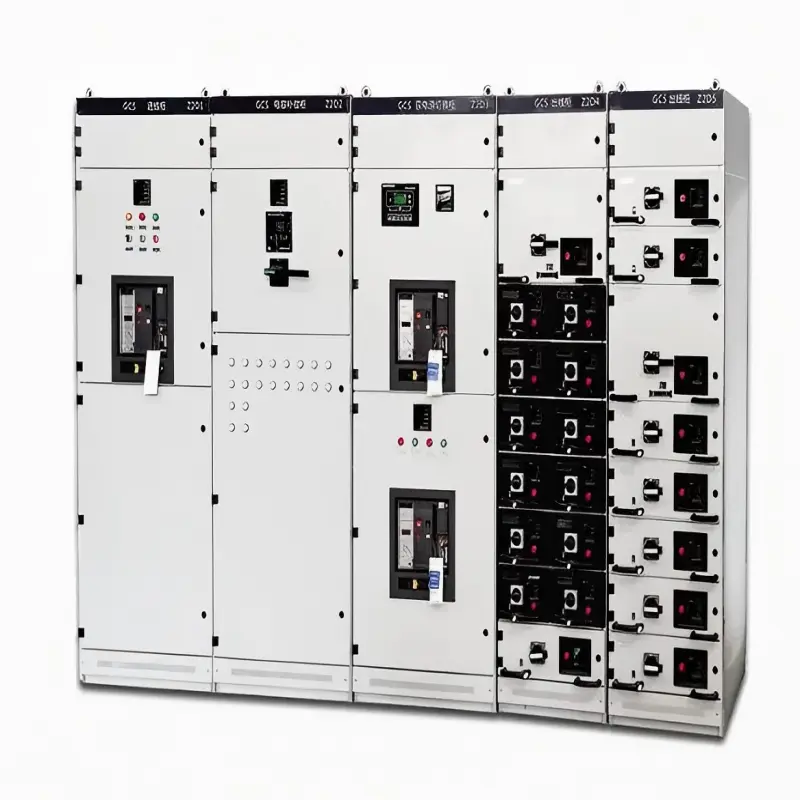

· Low-Voltage Distribution: GGD, GCS, or MNS switchgear with incoming, outgoing, and reactive compensation functions, supporting panel-type or cabinet-mounted structures .
How to Select the Ideal Switchgear Configuration for Space-Constrained Urban Sites?
For traditional substations with abundant floor space, conventional AIS installations remain feasible. However, urban underground substations, compact GIS installations, and congested commercial districts demand space-optimized solutions. Lugao offers customized footprint optimization, reducing overall ground area requirements by utilizing high-density switchgear and integrated designs. GIS solutions, with their compact volume, are particularly suited for urban distribution where land costs are prohibitive. AIS units, while larger, offer superior service access for industrial applications where maintenance frequency is higher.
