When protection relays fail to clear a fault within the critical 0.1-second window, the resulting arc flash can vaporize busbars and trigger catastrophic substation blackouts—but how do you select switching equipment that guarantees both rapid fault interruption and long-term mechanical endurance under repeated short-circuit stresses? Lugao Power Co., Ltd. addresses this with our High Voltage Switchgear solutions, engineered as metal-enclosed, rigorously tested systems featuring vacuum or SF6 circuit breakers with interrupting ratings up to 40 kA, providing utilities and heavy industrial facilities with reliable protection and control for primary distribution networks where fault currents are severe and supply continuity is critical.

Facing High Fault Currents? Here's How to Determine If HV Switchgear Is Your Only Option

When evaluating qualified Switchgear suppliers for primary distribution networks, engineering procurement teams frequently ask: At what fault current level does RMU protection become inadequate, forcing the specification of high voltage switchgear with full-power circuit breakers? The answer depends on fault current magnitude, protection coordination requirements, and the criticality of the circuit.

High Voltage Switchgear is specifically designed for primary distribution networks where fault currents are severe and the protection system must interrupt short-circuit currents without relying on backup fuses. Unlike RMUs that combine load switches with fuses for economic fault protection, high voltage switchgear incorporates power circuit breakers capable of interrupting full short-circuit currents up to 40 kA or higher. This configuration is essential for utility substations, heavy industrial plants, and renewable energy installations where fault levels exceed the capability of fuse-protected equipment.

Lugao's High Voltage Switchgear features either drawable or fixed circuit breaker configurations, providing flexibility for maintenance and operation. The metal-enclosed construction with segregated busbar compartments ensures fault containment, preventing internal arc propagation to adjacent sections. The robust design, validated through rigorous type testing, delivers decades of reliable service in demanding environments.

How Does Lugao Validate Arc Resistance and Short-Circuit Withstand Capability?

High Voltage Switchgear must withstand the immense electromagnetic forces and arc flash energy generated during severe fault conditions. Lugao High Voltage Switchgear systems are engineered with high-dielectric foundations validated through rigorous testing: power frequency withstand at 42 kV for one minute and lightning impulse withstand at 75 kV, meeting or exceeding IEC 62271-200 standards. Short-circuit withstand ratings are validated through full-power testing, with examples including 20 kA to 40 kA RMS on the high-voltage side.

Arc resistance is a critical safety feature. Our switchgear undergoes internal arc fault testing (IAC rating) to ensure the enclosure can contain and safely vent arc energy, protecting personnel and adjacent equipment. Post-test inspections confirm busbar joint integrity and zero structural deformation, assuring project engineers of system stability under the most demanding fault conditions.

What Structural Protections and Environmental Adaptations Are Integrated?

Exposed to weather, dust, and potential arc events, the switchgear enclosure is the first defense against environmental degradation and accident consequences. Lugao High Voltage Switchgear achieves IP4X protection ratings for indoor units and higher ratings for outdoor installations, providing effective resistance against solid particle ingress and water splashes. Constructed from corrosion-resistant steel with anti-corrosion surface treatments (≥2mm thickness for critical components), the housing withstands extreme ambient temperatures, high humidity, and corrosive coastal atmospheres.

The segregated busbar and circuit breaker compartments provide enhanced safety through physical separation of live parts. Each functional compartment is independently sealed with fire-resistant barriers, preventing fault propagation between sections and containing potential incidents within the originating compartment. This compartmentalization design ensures that a fault in one section does not compromise the integrity of adjacent sections, maintaining system stability and reducing damage.

What Voltage Classes and Configuration Options Can Lugao Supply?

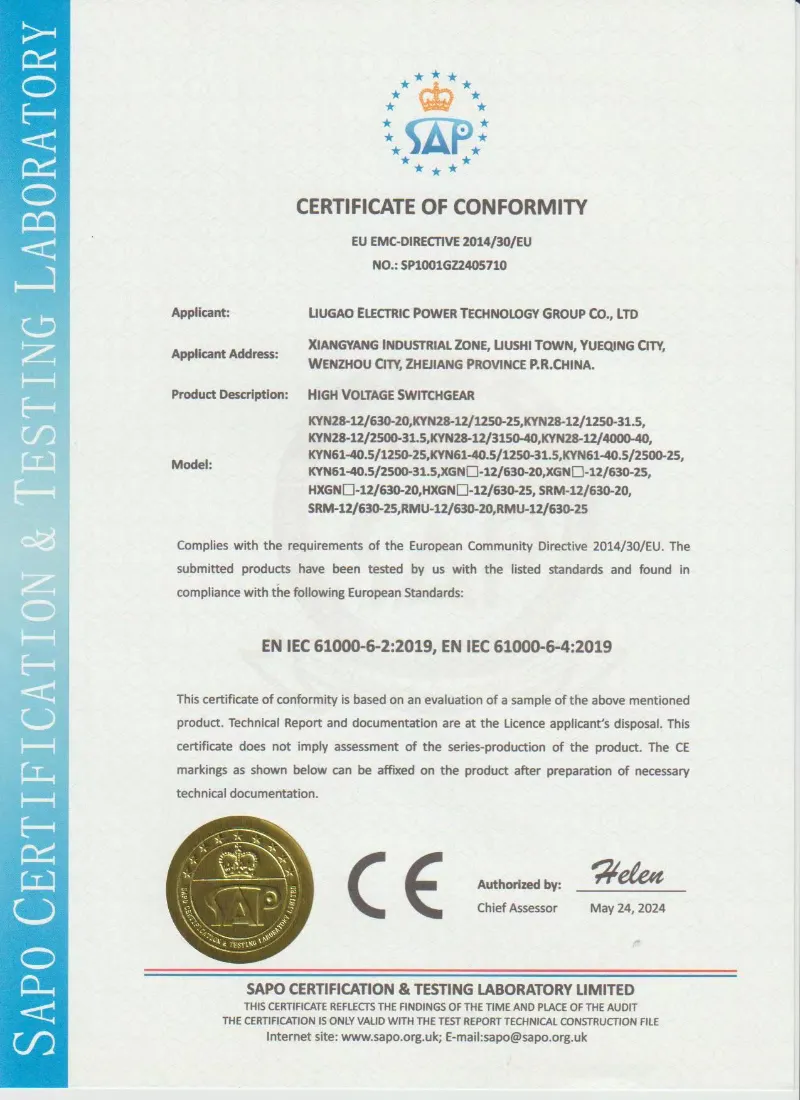

Lugao's ISO9001 and SGS-certified production workshop, equipped with professional assembly lines and full-power test bays, manufactures High Voltage Switchgear in strict accordance with IEC, GB, CE, and CCC international standards, supporting direct plug-and-play deployment without costly site modifications.

Voltage Classes & Capacity Ranges

Switchgear and Component Options

Lugao offers flexible internal configurations to match specific project requirements:

· Circuit Breaker Type: Vacuum Circuit Breaker (VCB) for medium voltage applications, offering superior arc quenching and longer service life. SF6 circuit breakers available for higher voltage applications requiring robust interrupting capability.

· Switchgear Cabinet Types: KYN28A, KYN61, or GIS configurations with fixed or drawable designs, supporting ring network, terminal, or dual power supply modes.

· Protection and Control: Integrated protection relays with communication interfaces for remote monitoring and control, including overcurrent, earth fault, directional, and differential protection functions.

How to Select the Ideal High Voltage Switchgear Configuration for Your Primary Substation?

For utility substations and heavy industrial plants where fault currents are severe and circuit reliability is critical, high voltage switchgear with circuit breaker protection is essential. Lugao offers customized configuration options, including different breaker ratings, busbar arrangements, and protection schemes, to match specific project requirements. The robust construction and comprehensive testing ensure decades of reliable service in demanding environments.
