Urban land scarcity, lengthy on-site construction cycles, and the rising demand for distributed power networks often complicate traditional substation deployment. Operating as a specialized, China-based Box-Type Transformer Substation manufacturer, Lugao Power Co., Ltd. eliminates these project bottlenecks through our factory-assembled, fully integrated substations that combine medium-voltage switchgear, power transformers, and low-voltage distribution into a single, compact enclosure. Since 2016, our ISO9001 and SGS-certified facility has delivered robust American and European-type substations that reduce installation time by up to 60%, providing utilities, EPC contractors, and industrial facilities with a reliable, plug-and-play power distribution solution ready for immediate service.
When evaluating qualified Box-Type Transformer Substation suppliers, engineering procurement teams frequently ask: Should we specify American or European design standards for our distribution network? The answer depends on application context and regional grid preferences.
American-type substations feature a distinctive three-compartment design—transformer, high-voltage, and low-voltage sections—with the transformer compartment typically using a fully sealed, oil-immersed unit. This design emphasizes compact footprint, offering approximately one-third to one-fifth the volume of European-type units of equivalent capacity, making it particularly suitable for outdoor installations in residential communities and urban distribution networks with limited land availability.

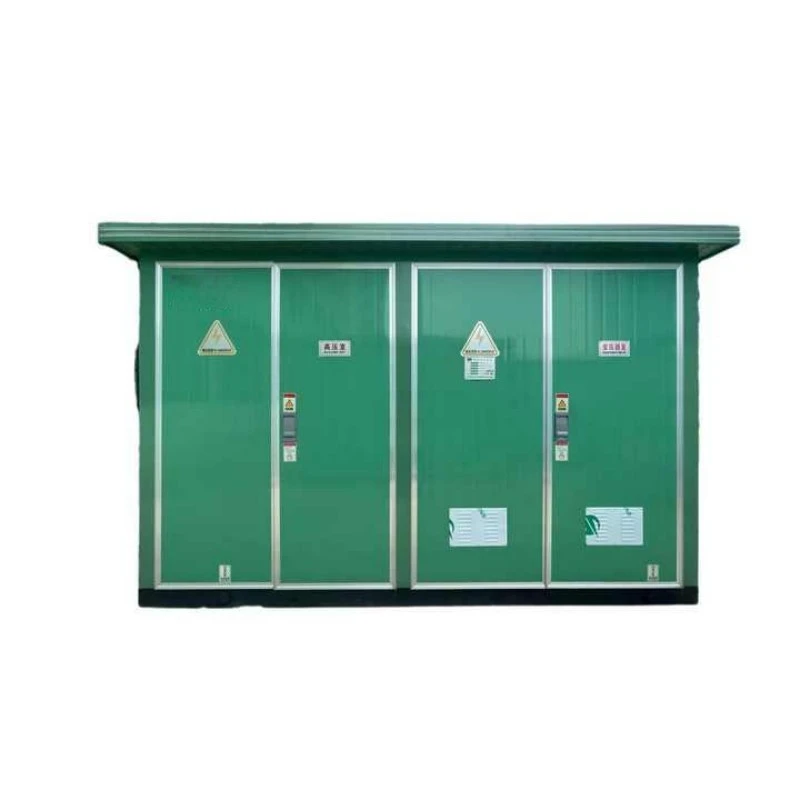

European-type substations, by contrast, adopt a more modular, room-based configuration with separate high-voltage switchgear, transformer, and low-voltage compartments within a single enclosure. This design prioritizes serviceability and flexibility, accommodating both oil-immersed and dry-type transformers, and is widely adopted in industrial parks, commercial complexes, and municipal infrastructure projects across IEC-standard regions.
|
Design Type |
Standard |
Footprint |
Typical Application |
|
American Type |
ANSI / IEEE |
1/3 to 1/5 volume of European type |
Residential communities, urban distribution, space-constrained yards |
|
European Type |
IEC 62271-202 |
Larger footprint |
Industrial parks, commercial buildings, municipal projects |
Both designs share core advantages—factory pre-testing, minimal civil works, and rapid deployment—but the choice ultimately aligns with your local grid standards, available site area, and maintenance preferences. Lugao offers both configurations with full customization, ensuring seamless integration regardless of regional requirements.
Box-type substations must withstand lightning surges, switching overvoltages, and continuous load-induced thermal stress. Lugao Box-Type Transformer Substations are engineered with high-dielectric foundations validated through rigorous testing: power frequency withstand at 42 kV for one minute and lightning impulse withstand at 75 kV on the high-voltage side. These thresholds meet or exceed both American and European type substation requirements, protecting internal transformer windings and switchgear components from grid disturbances.
Thermal management directly influences transformer insulation life. Our full-load temperature rises—approximately 45.1 K on high-voltage windings and 52.9 K on low-voltage windings—consistently remain within IEC and IEEE prescribed limits. The enclosure design incorporates optimized ventilation pathways and heat-dissipation surfaces that actively channel heat away from critical components, preventing localized hotspots that degrade paper insulation and accelerate oil aging. This thermal resilience translates into lower lifecycle costs and reduced maintenance frequency for your Power Transformer investment.
Exposed to weather, dust, and accidental impacts, the substation enclosure serves as the first defense against environmental degradation. Lugao substations achieve IP44 protection ratings, providing effective resistance against solid particle ingress and water splashes, suitable for both open-yard American-type installations and building-integrated European-type configurations. Constructed from corrosion-resistant steel with anti-corrosion surface treatments, the housing withstands extreme ambient temperatures, high humidity, and corrosive coastal atmospheres, ensuring structural integrity for decades of service.
Distribution networks inevitably experience fault currents. A substation's ability to survive these events without internal deformation or busbar damage is non-negotiable. Lugao Box-Type Transformer Substations are tested for short-circuit withstand—example ratings include 20 kA RMS on the high-voltage side—with post-test inspections confirming busbar joint integrity and zero structural deformation. This validated mechanical ruggedness assures project engineers that our substations maintain system stability under the most demanding fault conditions.
Lugao's ISO9001 and SGS-certified production workshop, equipped with professional assembly lines and full-power test bays, manufactures Box-Type Transformer Substations in strict accordance with IEC, GB, CE, and CCC international standards, supporting direct plug-and-play deployment without costly site modifications.

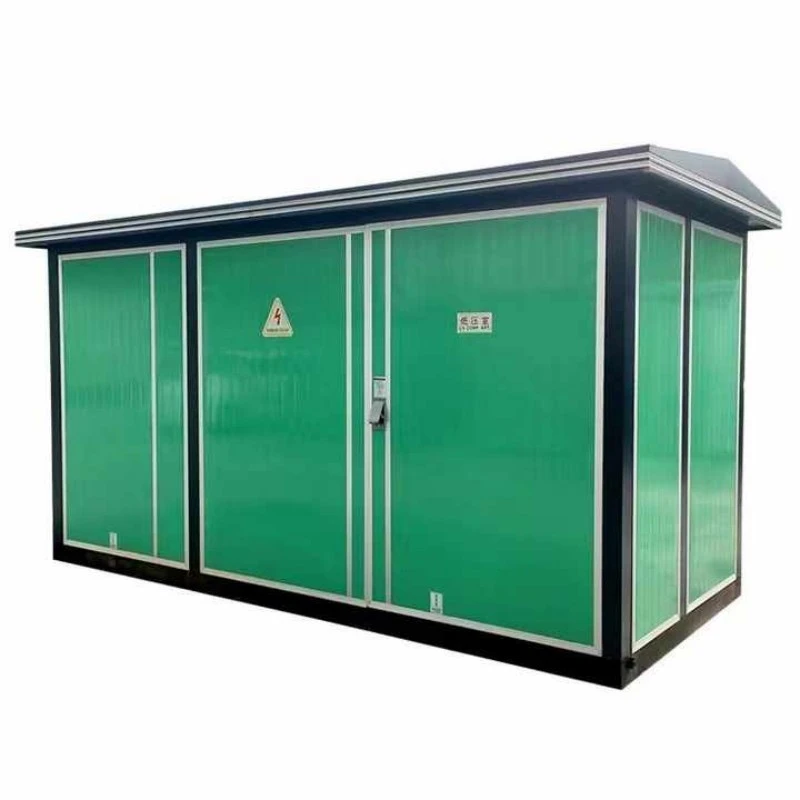

30kV / 35kV American & European Type Substations: Designed for utility distribution substations, wind farm collector systems, and heavy industrial zones requiring medium-voltage transformation with robust short-circuit withstand and low partial discharge levels.

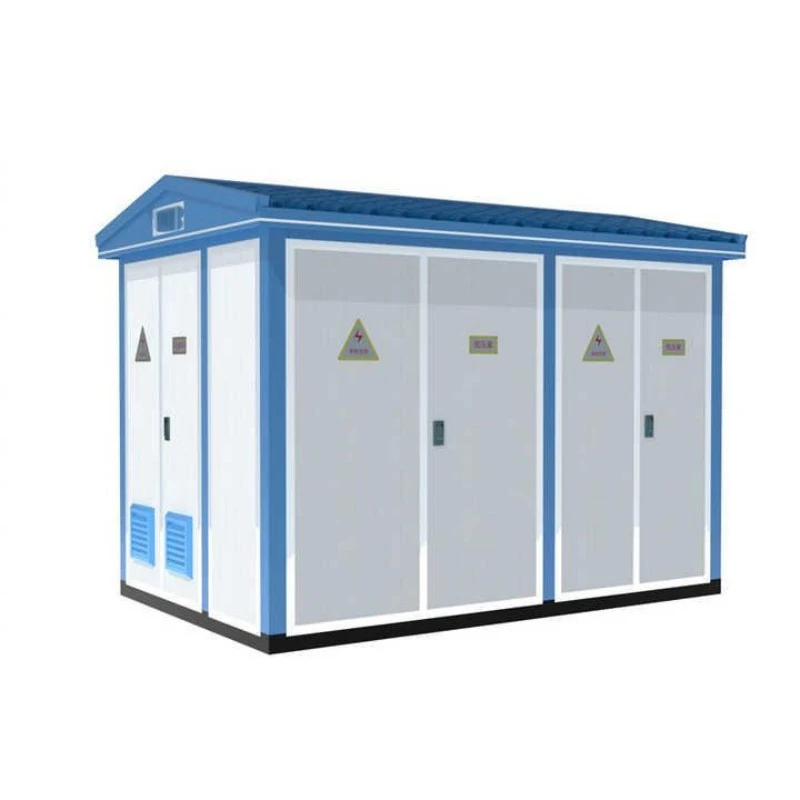

24kV (20kV) Smart/Compact Box Substation: Equipped with intelligent modules on both HV and LV sides, enabling remote control, sensing, signaling, and regulation for state grid automation applications. Suitable for urban high-rise buildings, residential houses, and municipal infrastructure.
11kV / 10kV Distribution Substation: Ideal for commercial complexes, residential communities, and rural electrification projects. Features a corrugated tank design or dry-type transformer options, eliminating conservator maintenance requirements and ensuring reliable operation in harsh outdoor environments.
Lugao offers flexible internal configurations to match specific project requirements:
Transformer Type: Fully sealed oil-immersed (S9, S11, S13, SH15) or dry-type (SCB10, SCB11, SCBH15) options, accommodating fire-safety and environmental preferences.
High-Voltage Switchgear: XGN15, HXGN17, or KYN28A cabinets with load switch or vacuum circuit breaker configurations, supporting ring network, terminal, or dual power supply modes.
Low-Voltage Distribution: GGD, GCS, or MNS switchgear with incoming, outgoing, and reactive compensation functions, supporting panel-type or cabinet-mounted structures.
For traditional substations with abundant floor space, conventional building-type installations remain feasible. However, urban underground substations, compact GIS installations, and congested commercial districts demand space-optimized solutions. Lugao offers customized footprint optimization, reducing overall ground area requirements by utilizing high-density switchgear and integrated transformer designs. American-type substations, with their compact volume, are particularly suited for residential community distribution where land costs are prohibitive. European-type units, while larger, offer superior service access for industrial applications where maintenance frequency is higher.
Experience Lugao's Box-Type Transformer Substation manufacturing excellence firsthand:
