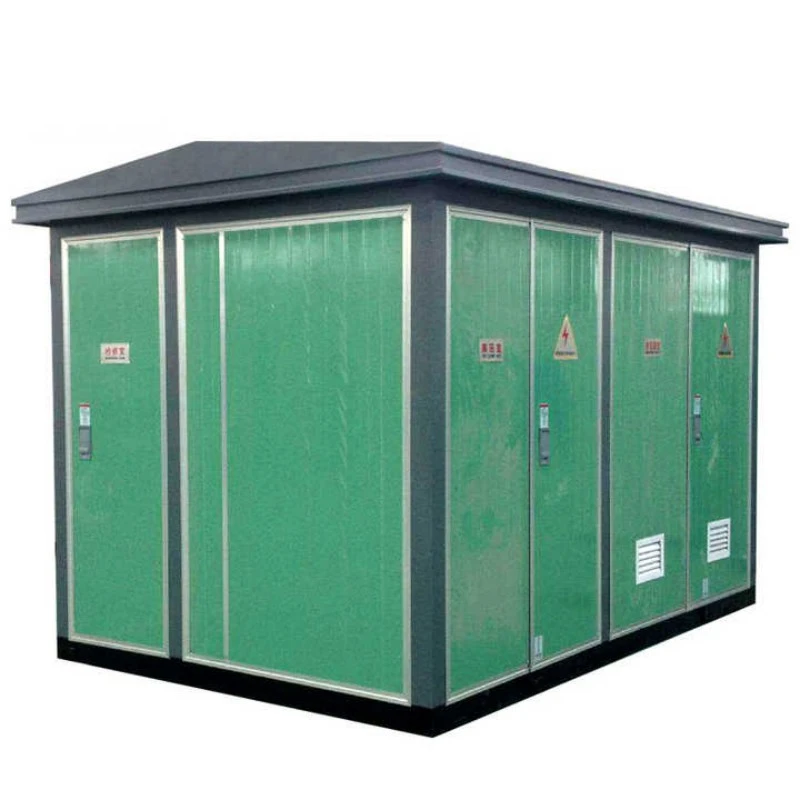

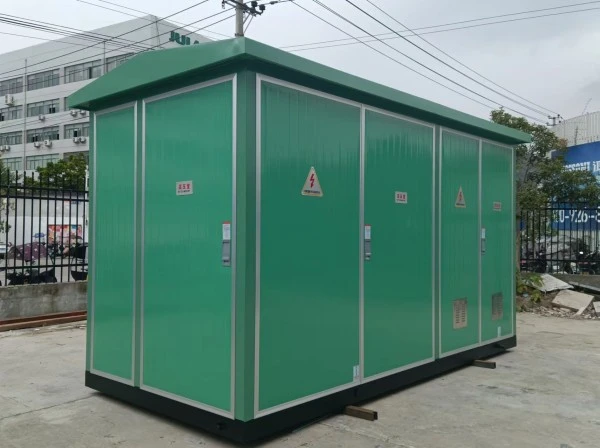

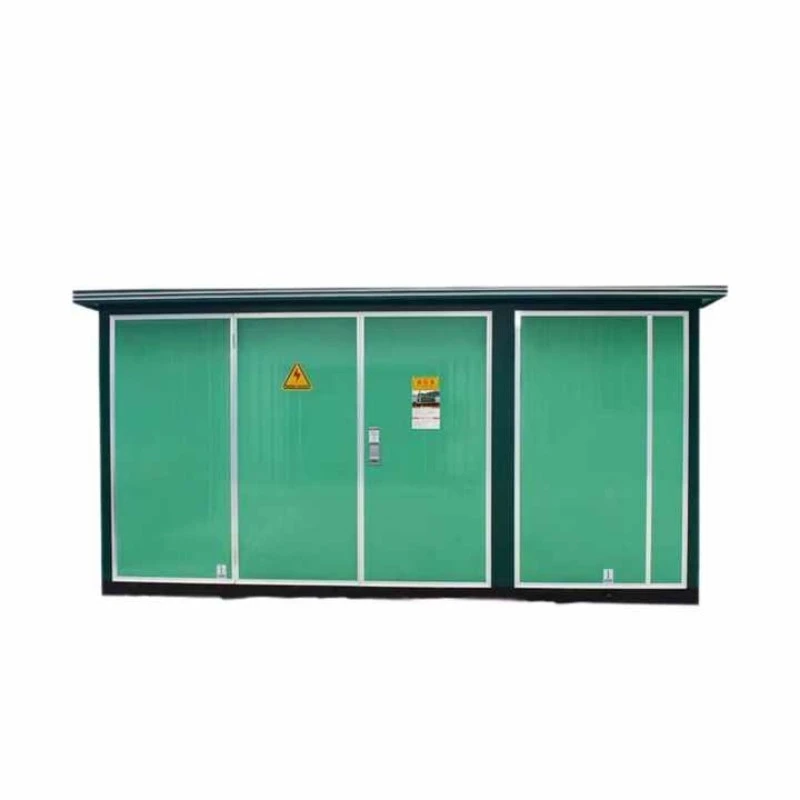

Wind Power Packaged European Type Substation

The Wind power Packaged European type Substation is a factory-assembled, compact power conversion unit specifically designed to collect medium-voltage electricity from one or multiple wind turbines, step it down (or up) to grid-compatible levels, and protect both the turbine and the utility network from electrical faults.

Unlike generic box substations, this unit is purpose-built for the unique demands of wind generation:

● High vibration tolerance: Reinforced internal busbars and anti-loosening hardware.

● Wide voltage swing accommodation: Handles output fluctuations from 400V (turbine terminal) to 35kV (collection grid).

● Remote monitoring ready: Integrated SCADA ports for turbine control rooms.

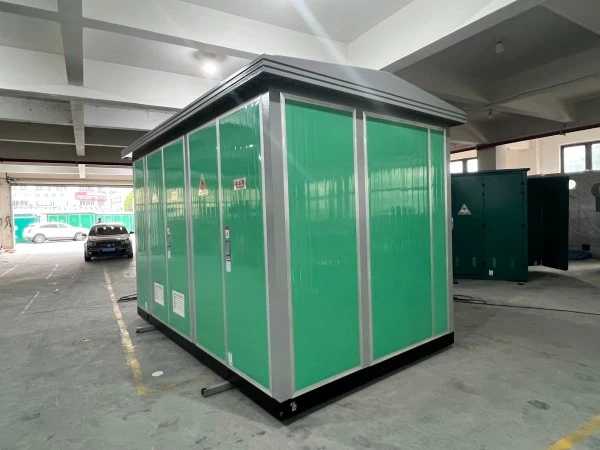

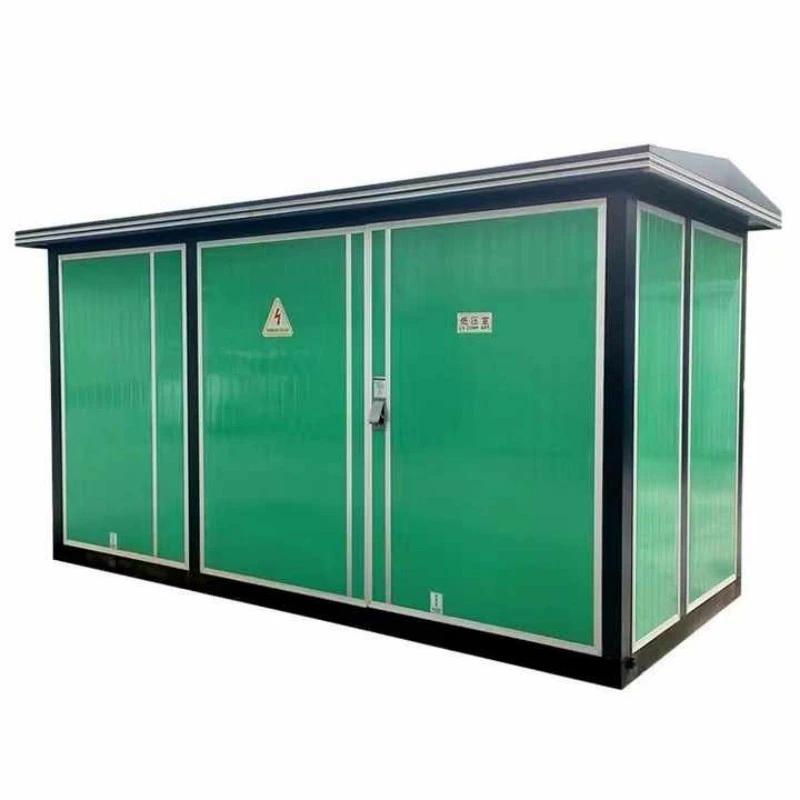

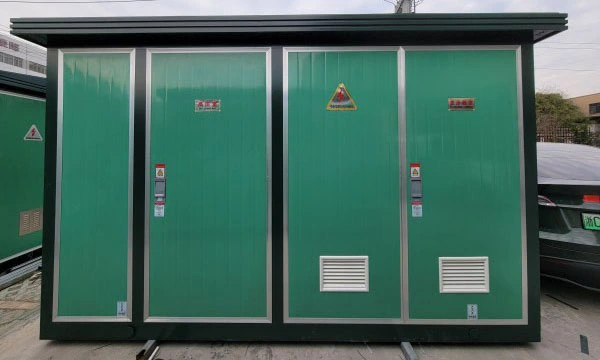

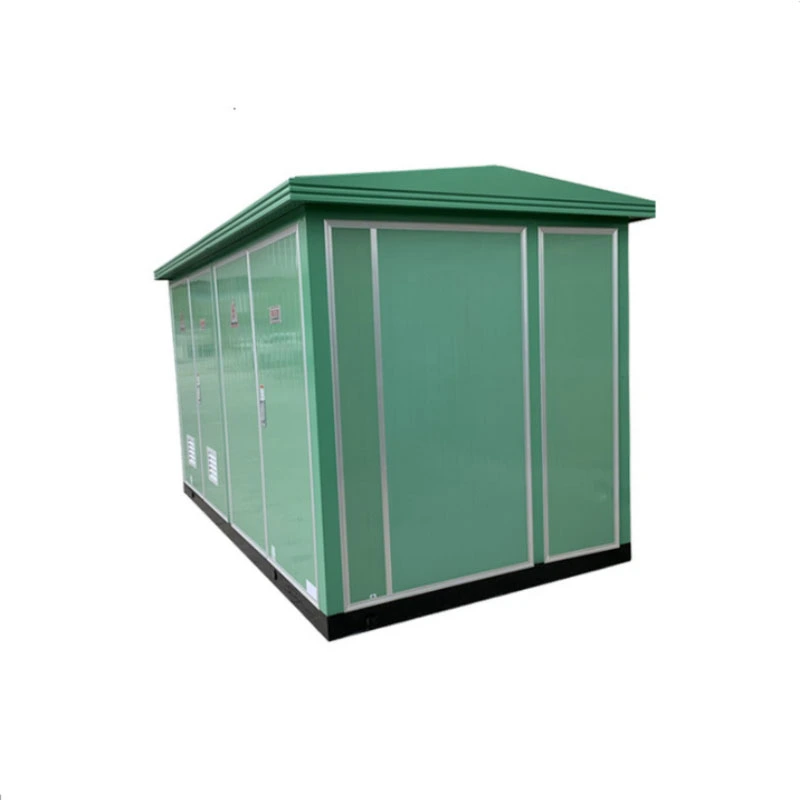

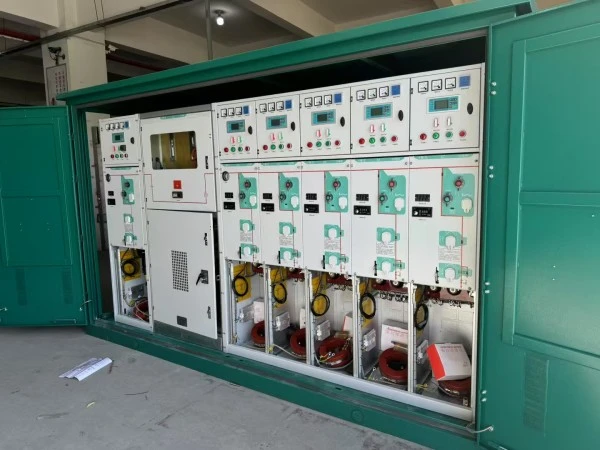

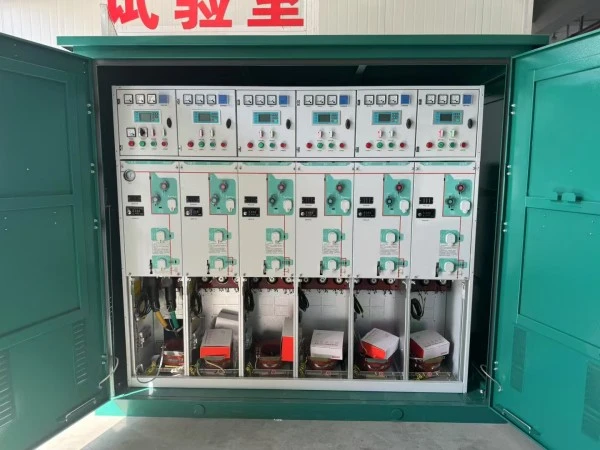

Physically, the Wind power Packaged European type Substation maintains the classic European three-compartment architecture (HV side, transformer, LV side) but adds wind-specific features: a dedicated interface protection relay, harmonic filtering terminals, and a weatherproof enclosure rated for coastal salt spray.

What Can It Do?

Primary function: Acts as the electrical interface between a wind turbine generator and the medium-voltage collection network.

Four core jobs:

1. Voltage transformation: Converts the turbine's output voltage (typically 690V) to collection grid voltage (10kV–35kV) using a step-up transformer located inside the unit.

2. Fault isolation: Automatically disconnects the turbine if grid parameters (voltage, frequency) drift outside permissible limits, protecting both assets.

3. Power quality conditioning: Provides grounding, surge arresters, and filtering points to mitigate harmonics generated by variable-frequency drives inside the turbine.

4. Energy metering & monitoring: Houses utility-grade CTs and PTs for feed-in tariff measurement and remote performance tracking.

Because the Wind power Packaged European type Substation arrives fully pre-wired and tested, wind farm developers avoid months of on-site electrical assembly. One unit serves either a single large turbine (2MW–6MW) or a small cluster of smaller turbines in a "daisy chain" configuration.

Product Parameter

Below are the standard technical specifications for the Wind power Packaged European type Substation from Lugao Power. Custom ratings available upon request.

Product Feature And Application

Q1: What makes the Wind Power Packaged European Type Substation different from a standard European substation?

A: Three wind-specific features. First, the transformer inside a Wind power Packaged European type Substation is designed for bi-directional power flow and frequent voltage fluctuations—turbines ramp up and down constantly. Second, the LV compartment includes a dedicated grid interface protection relay that trips within 100ms if grid voltage or frequency drifts, as required by utility interconnection standards (e.g., IEEE 1547, IEC 61727). Third, the entire enclosure uses anti-vibration mounts on all electrical contacts; standard units would see screw loosening after six months near a turbine.

Q2: How does this unit handle lightning strikes common in open wind farms?

A: Every Wind power Packaged European type Substation comes equipped with Type 1+2 surge arresters on both HV and LV sides (discharge capacity 25kA per pole). Additionally, the transformer tank has a direct grounding lug sized for 120mm² copper cable. In our factory test, we simulate 10/350μs lightning impulses up to 100kA without internal flashover.

Q3: Can this substation be used for both onshore and offshore wind?

A: Onshore—absolutely. For offshore, we offer an upgraded version called the "Offshore Package." The standard Wind power Packaged European type Substation has IP54 rating, suitable for onshore coastal zones. For offshore (on turbine platform or jacket foundation), we upgrade to IP66, use C5-M marine-grade coating (over 400μm thick), and replace all standard steel bolts with 316L stainless steel. The transformer oil is replaced with natural ester (biodegradable) to meet environmental regulations.

Q4: What are the most common application scenarios for this unit?

A: Four primary applications:

Production Details

How Lugao Power Builds a Better Wind Power Packaged European Type Substation

Detail 1: Anti-Vibration Engineering

Most substation failures in wind farms trace back to loosened connections from constant turbine oscillation (0.5–2 Hz). Our solution: every busbar connection uses Belleville disc springs under the bolt head, maintaining clamping force even as components vibrate. Terminal blocks are cage-clamp type (not screw-clamp). Internal cable ties are replaced with stainless steel locking straps. Result: after 5,000 hours of simulated vibration (2g, 5–200Hz sweep), torque retention remains >90% of initial value.

Detail 2: Transformer Design for Wind Duty Cycle

Standard distribution transformers see steady loads. Wind transformers see rapid swings from 0% to 110% in under 10 seconds. Our Wind power Packaged European type Substation uses a high-short-circuit-strength core with axial clamping pressure of 4.5 MPa (vs. industry standard 2.5 MPa). Windings are continuously transposed conductors (CTC) rather than multiple parallel strands, eliminating circulating current losses during unbalanced loads. We also add fiber optic temperature sensors embedded directly in the LV winding—not just top oil thermometers—giving real-time hotspot data to the turbine controller.

Detail 3: Corrosion Protection Beyond Paint

Wind farms sit in Class C3 (inland) to C5-M (offshore) environments. Standard powder coating fails at cut edges. Our process:

1. Edge sealing: Every laser-cut edge receives a bead of epoxy edge sealer before painting.

2. Zinc-rich primer: 80μm of 95% zinc dust epoxy primer (sacrificial protection).

3. Intermediate coat: 100μm of high-build epoxy.

4. Topcoat: 80μm of polyurethane (RAL 7035 light gray, or custom).

Total DFT (dry film thickness) = 260μm minimum. Salt spray tested to 1,500 hours without creep (ASTM B117).

Our Advantage vs. Competitors

Why Choose Lugao Power for Wind Power Substations?

10+ Years of Power Equipment Manufacturing

Dedicated Transformer and MV Switchgear Engineering Team

Wind Power Substation Solutions from 1MVA to 8MVA

Factory Testing Before Shipment

Customized Designs for Onshore and Coastal Wind Projects

IEC-Compliant Manufacturing and Testing
