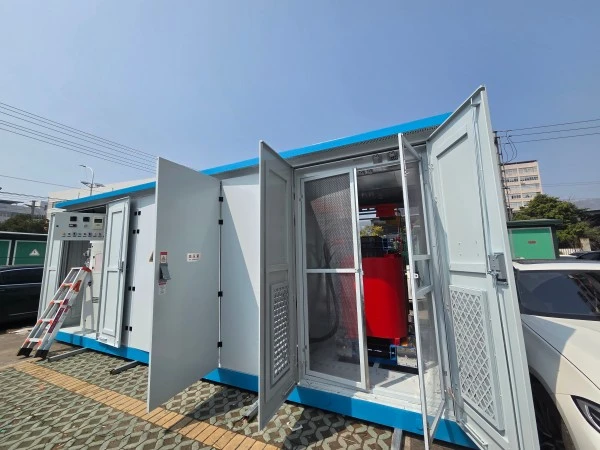

Smart Pre-installed European Type Transformer Substation

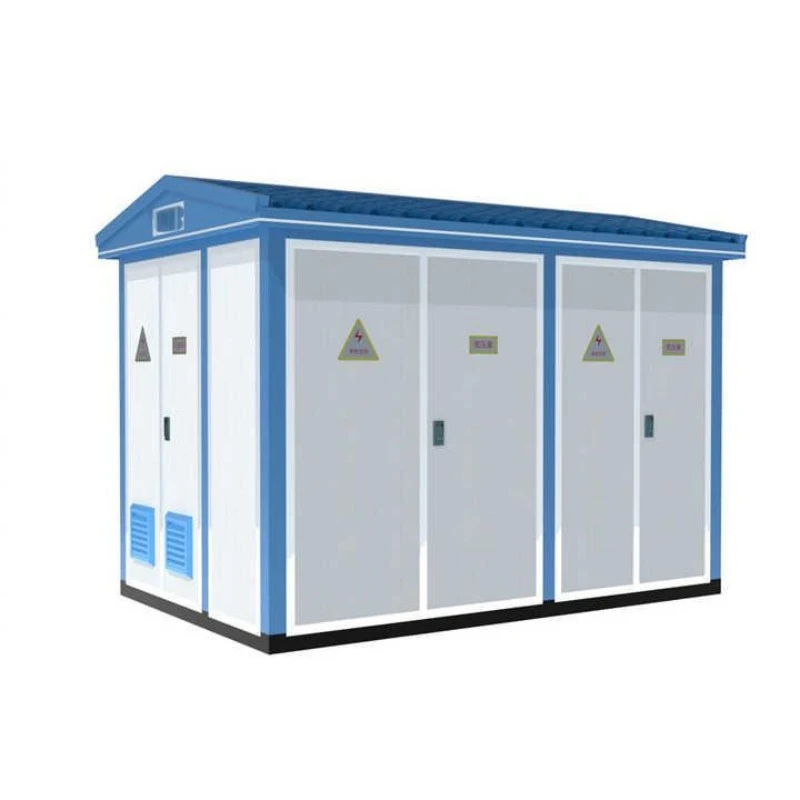

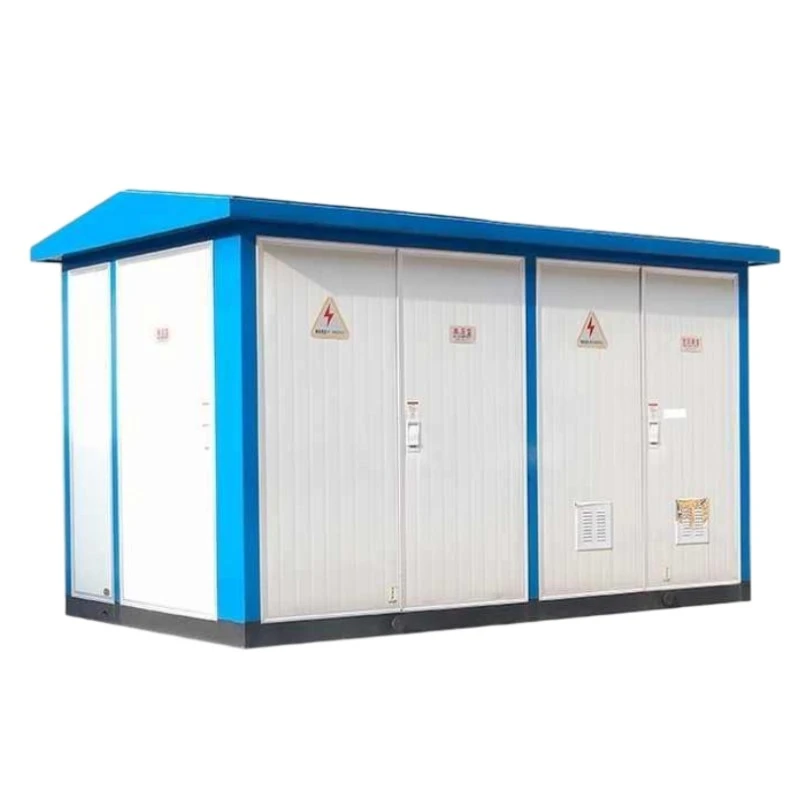

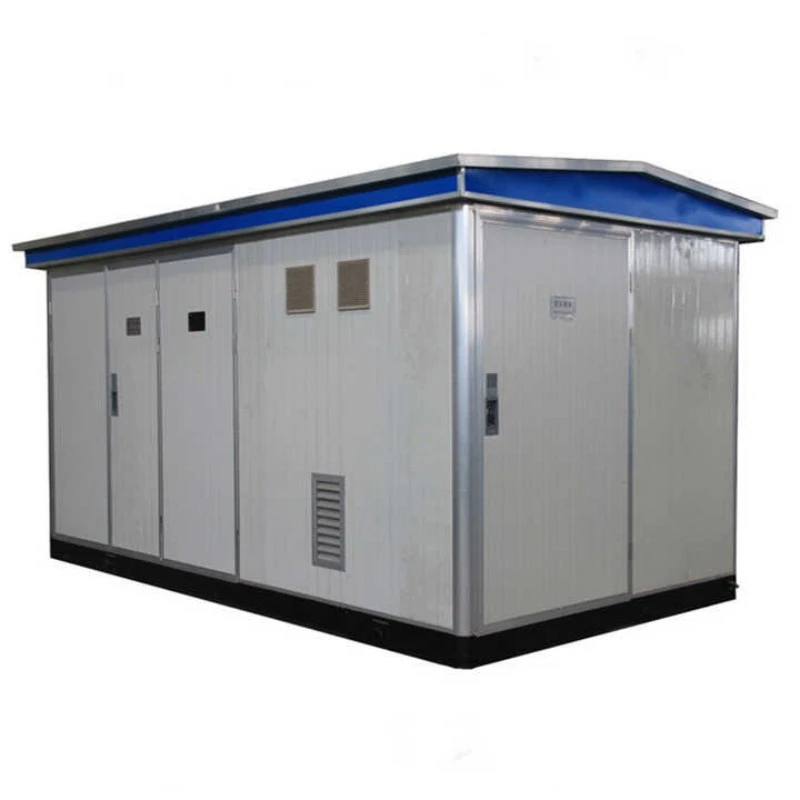

The Smart pre-installed European type transformer substation is a factory-assembled, compact power distribution unit that integrates a medium-voltage switchgear, a low-voltage distribution panel, and an oil-immersed or dry-type transformer into a single, enclosed housing. Unlike traditional civil engineering substations, this European-style unit is prefabricated, tested, and delivered as a ready-to-install system.

What Does It Do?

It steps down medium-voltage electricity (typically 6kV–35kV) to low-voltage levels (400V–690V) for safe distribution to residential communities, commercial buildings, factories, and renewable energy plants. The Smart pre-installed European type transformer substation also supports intelligent monitoring of load, temperature, and power quality, enabling remote fault diagnosis and automatic alarm functions. This makes it an ideal choice for smart grids and unattended substations.

Product Advantages

1. Smart Monitoring & Remote Control

The Smart pre-installed European type transformer substation comes with an optional intelligent terminal unit (ITU) that collects real-time data on voltage, current, power factor, and oil temperature. Data can be transmitted via 4G, Ethernet, or fiber optics to a central control room, reducing on-site inspection costs.

2. Compact Footprint & Fast Deployment

Because it is pre-assembled at the factory, the Smart pre-installed European type transformer substation requires only a simple foundation on-site. Installation takes 1–2 days instead of weeks, saving up to 60% in civil works and land occupation.

3. High Reliability Under Harsh Conditions

With a protection rating of IP54 (or higher) for the enclosure and oil-immersed or epoxy-resin transformers inside, this substation resists dust, rain, salt fog, and extreme temperatures from -25°C to +40°C, ensuring continuous operation in deserts, coastal areas, or high-altitude regions.

4. Energy Efficiency & Low Loss

Equipped with S11 or S13 series low-loss transformers, the Smart pre-installed European type transformer substation reduces no-load losses by up to 30% compared to conventional units, directly lowering electricity bills and carbon emissions over a 20-year lifespan.

5. Fully Customizable

We offer flexible configurations: copper or aluminum windings, on-load tap changers, automatic power factor correction (APFC), and surge arresters. Whether you need a 200kVA unit for a villa area or a 2500kVA unit for an industrial park, we can tailor the solution.

Product Feature

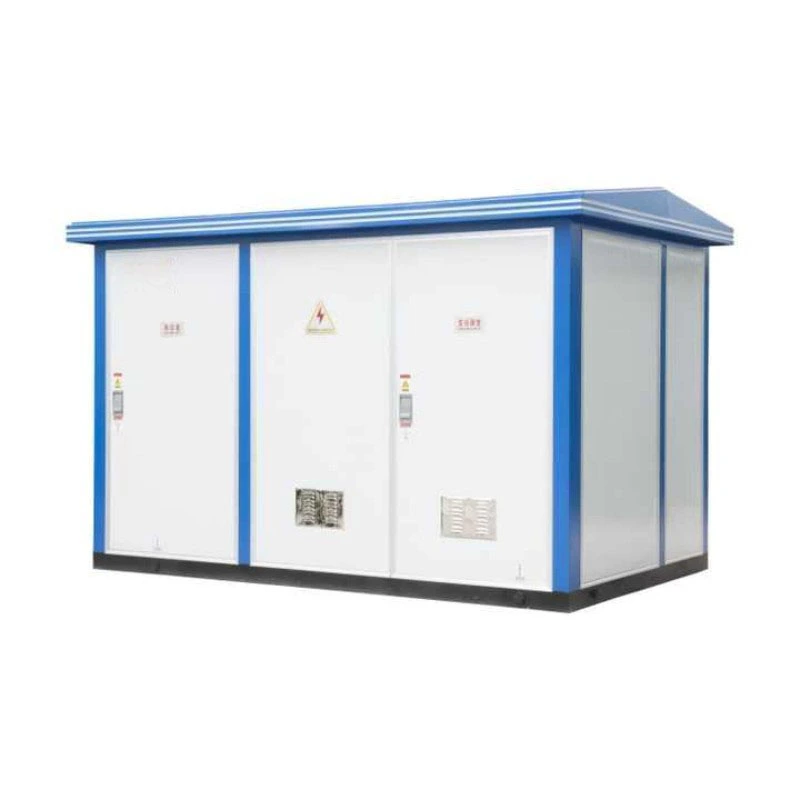

Fully Enclosed & Weatherproof Housing---Made of galvanized steel or aluminum alloy, coated with anti-corrosion paint, suitable for outdoor installation.

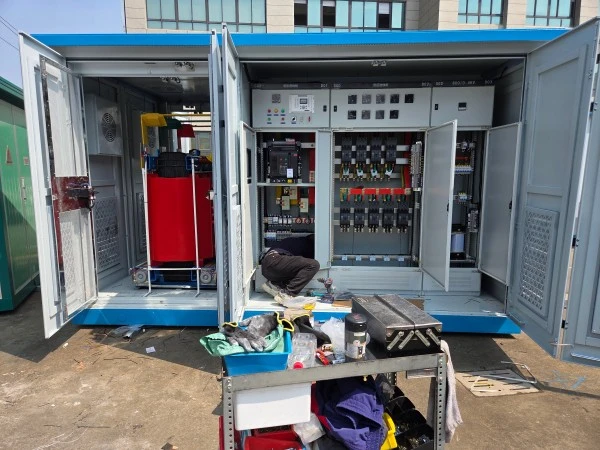

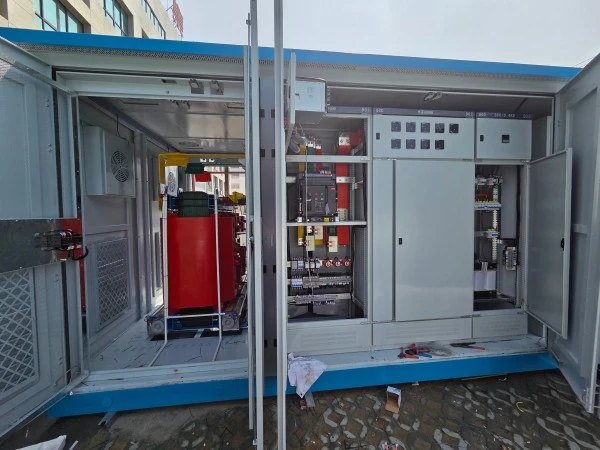

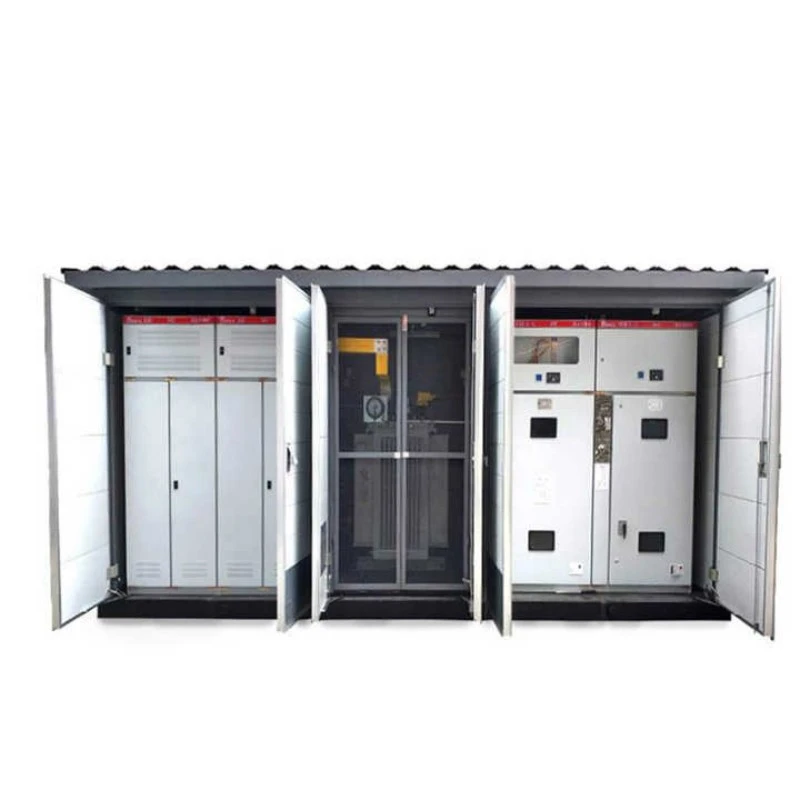

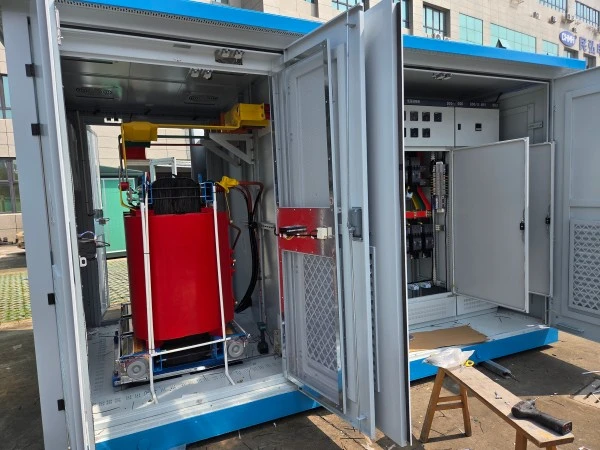

Modular Internal Layout---Separate compartments for HV switchgear, transformer, and LV distribution, with mechanical interlocks to ensure operator safety.

Intelligent Cooling System---Temperature-controlled fans for dry-type transformers or corrugated radiator panels for oil-immersed units, automatically activating when temperature exceeds setpoint.

Arc Flash & Overload Protection---Equipped with SF6 or vacuum circuit breakers, fused switches, and surge protection devices (SPD) to meet IEC 62271-202 standards.

User-Friendly Interface---Local touchscreen display (optional) shows real-time data and fault records, while remote access via smartphone app is available for maintenance staff.

Low Noise Operation---Sound level ≤55dB(A) for residential applications, achieved by vibration-damping mounts and acoustic insulation panels.

Anti-Theft & Security Design---Heavy-duty locks, door sensors, and optional CCTV integration make the Smart pre-installed European type transformer substation suitable for remote, unattended sites.

Product Application

The Smart pre-installed European type transformer substation is widely used in:

Urban Power Distribution

Residential complexes, shopping malls, hotels, and hospitals where space is limited and fire safety is critical.

Underground parking lots or rooftop installations benefit from its compact, oil-containment design.

Renewable Energy Projects

Solar farms and onshore wind parks require quick deployment and weather resistance. This substation integrates seamlessly with PV inverters and wind turbine converters.

Infrastructure & Public Facilities

Airports, subway stations, tunnels, and bridges rely on its high reliability and remote monitoring to ensure uninterrupted lighting and ventilation.

Industrial & Mining Sites

Factories, chemical plants, and mines use the Smart pre-installed European type transformer substation to isolate grid faults and protect sensitive machinery.

Temporary & Emergency Power

Construction sites, disaster relief zones, and outdoor events benefit from its plug-and-play nature and easy relocation.

Production Details

Housing & Mechanical Design

The outer enclosure of the Smart pre-installed European type transformer substation is manufactured using laser-cut, bent, and welded steel plates. After welding, the entire housing undergoes shot blasting to remove scale, followed by electrostatic powder coating with a minimum thickness of 80µm. This provides C5-M corrosion resistance (ISO 12944) for coastal or industrial environments.

Doors are equipped with polyurethane gaskets, compression latches, and removable hinges. A sloped roof prevents water pooling, and base channels include forklift pockets and lifting lugs for easy transport.

Transformer Core & Windings

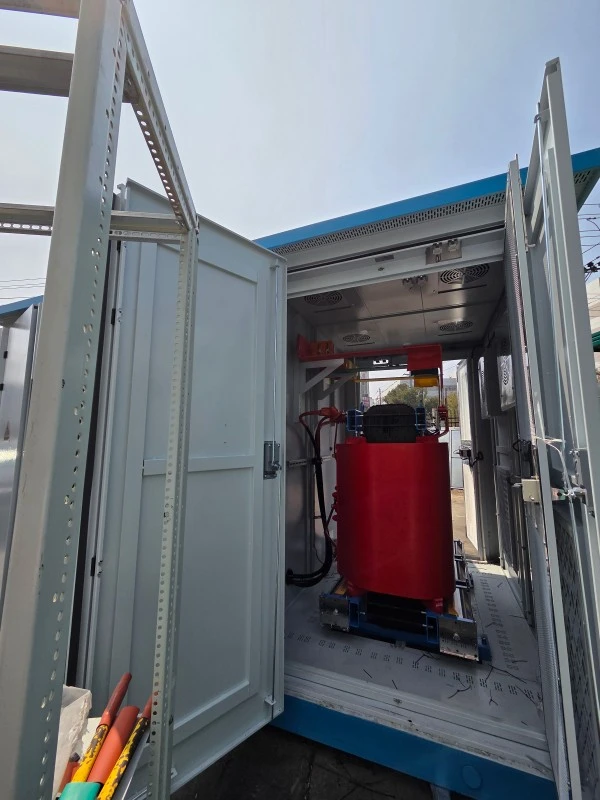

We use high-permeability cold-rolled grain-oriented silicon steel (0.23mm or 0.27mm) with step-lap joints to reduce no-load current. Windings are made of oxygen-free copper or aluminum foil (for low voltage) and round copper wire (for high voltage). For dry-type versions, Class H epoxy resin is vacuum-cast to eliminate voids and achieve partial discharge <10pC. For oil-immersed versions, we use mineral oil or natural ester fluid with a corrugated tank to absorb oil expansion.

Switchgear & Busbars

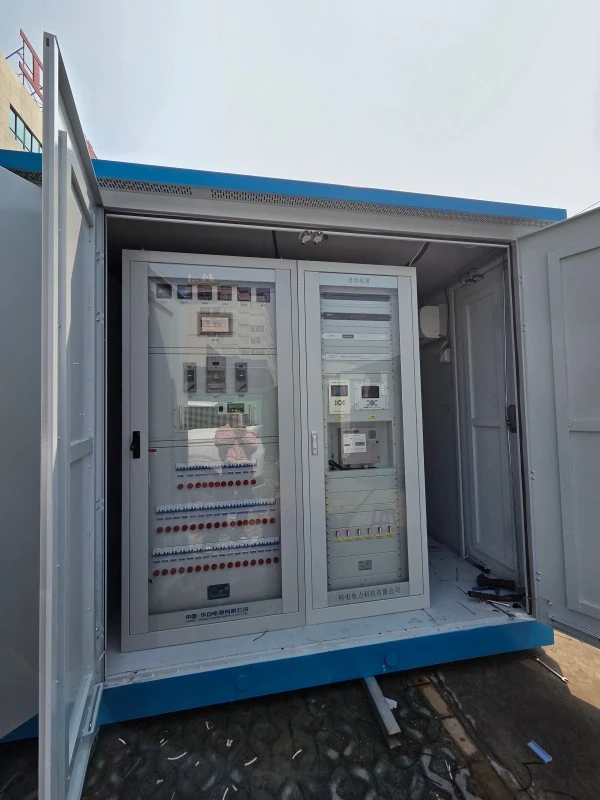

Inside the Smart pre-installed European type transformer substation, the HV compartment houses a load break switch or circuit breaker (SF6 or vacuum type) with visible break contacts. LV compartment includes a main molded case circuit breaker (MCCB), feeder breakers, and a busbar system rated up to 4000A. All busbars are tin-plated copper with heat-shrink insulation.

Intelligent Monitoring System (Optional)

We integrate a smart RTU (remote terminal unit) that measures three-phase voltages, currents, active/reactive power, and harmonics up to the 31st order. Data is logged every 5 minutes and stored for 90 days. Alarms for overvoltage, undervoltage, overtemperature, and door opening are sent via SMS or email.

Quality Testing

Every Smart pre-installed European type transformer substation undergoes 100% factory testing:

1. Dielectric withstand test (2.5kV for 1 minute)

2. Dynamic short-circuit test (simulated)

3. IP54 water ingress test

4. Temperature rise test (8 hours at full load)

5. Partial discharge measurement (≤10pC for dry type)

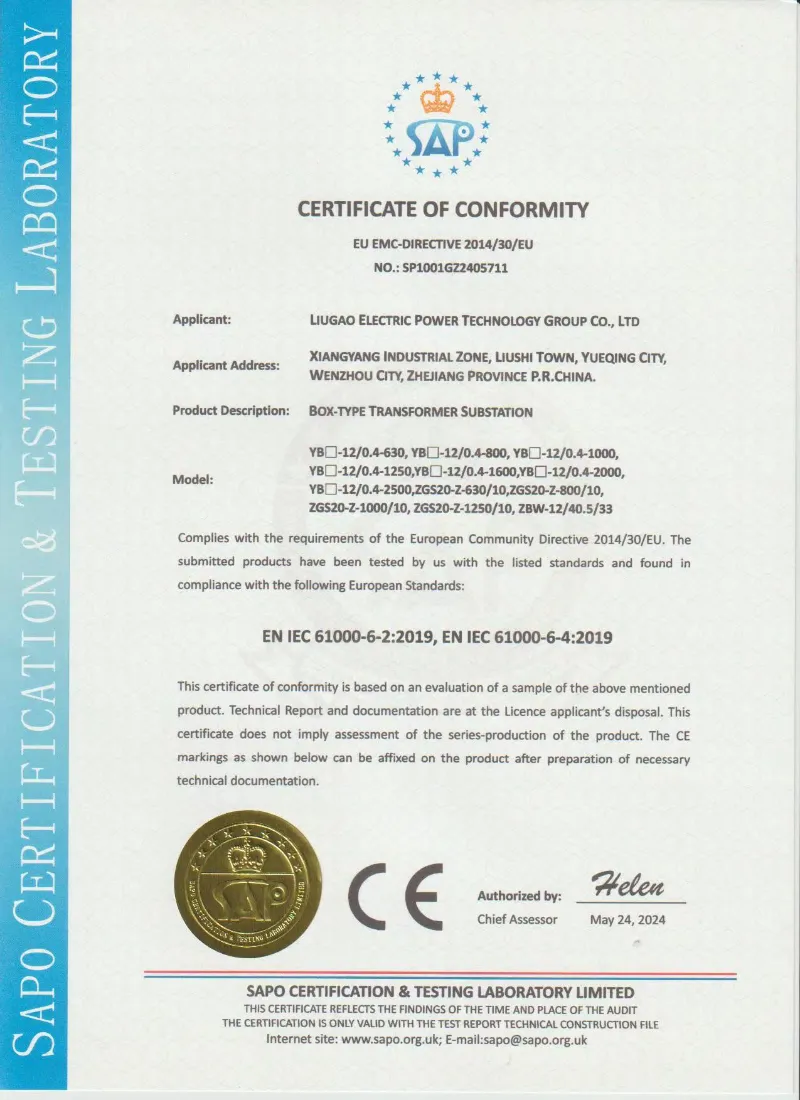

6. Test reports are provided with each shipment, complying with IEC 62271-202, GB/T 17467, and EN 61330 standards.
