When evaluating qualified Box-Type Transformer Substation suppliers, engineering procurement teams frequently ask: Should we specify American or European design standards for our distribution network? The answer depends on available site area, regional grid preferences, and installation environment.

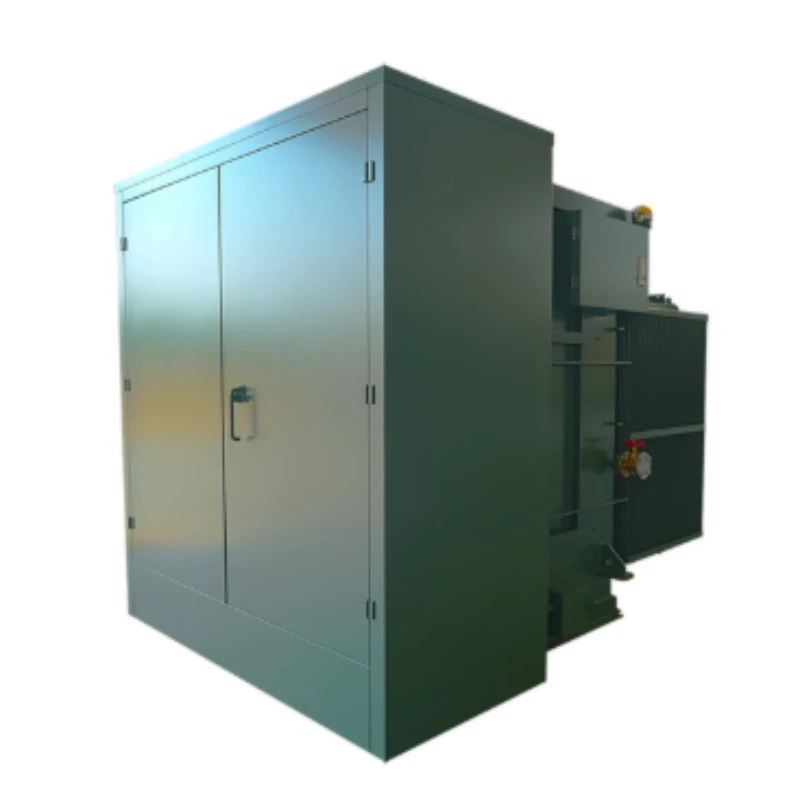

American-type substations feature a distinctive three-compartment design—transformer, high-voltage, and low-voltage sections—with the transformer compartment typically using a fully sealed, oil-immersed unit. This design emphasizes compact footprint, offering approximately one-third to one-fifth the volume of European-type units of equivalent capacity. The reduced volume makes it particularly suitable for outdoor installations in residential communities, urban distribution networks, and space-constrained yards where land costs are prohibitive.
Unlike the room-based European design that prioritizes service access, the American-type configuration is optimized for density. The sealed tank design eliminates the need for expansive maintenance corridors, allowing installation in confined spaces such as roadside verges, small utility plots, or within residential compounds. This space efficiency translates directly into significant land acquisition cost savings for developers and utilities.
American-type substations must withstand lightning surges, switching overvoltages, and continuous load-induced thermal stress within a significantly reduced volume. Lugao American Type Substations are engineered with high-dielectric foundations validated through rigorous testing: power frequency withstand at 42 kV for one minute and lightning impulse withstand at 75 kV on the high-voltage side. These thresholds meet or exceed both American (ANSI/IEEE) and international standards, protecting internal transformer windings and switchgear components from grid disturbances.
The compact design demands superior thermal management. Our full-load temperature rises—approximately 45.1 K on high-voltage windings and 52.9 K on low-voltage windings—consistently remain within IEEE prescribed limits. The enclosure design incorporates optimized ventilation pathways and heat-dissipation surfaces that actively channel heat away from critical components, preventing localized hotspots that degrade paper insulation and accelerate oil aging in the sealed tank environment.
Exposed to weather, dust, and accidental impacts, the compact substation enclosure serves as the first defense against environmental degradation. Lugao American-type substations achieve IP44 protection ratings, providing effective resistance against solid particle ingress and water splashes, making them ideal for open-yard installations exposed to the elements. Constructed from corrosion-resistant steel with anti-corrosion surface treatments, the housing withstands extreme ambient temperatures, high humidity, and corrosive coastal atmospheres, ensuring structural integrity for decades of service.
The fully sealed transformer compartment provides an additional layer of environmental protection. Unlike conventional oil-filled units that require conservator tanks and silica gel breathers, Lugao's American-type units feature a completely sealed design that prevents moisture ingress and oil oxidation, eliminating the maintenance associated with breather replacement and oil top-up.
Distribution networks inevitably experience fault currents. A substation's ability to survive these events without internal deformation or busbar damage is non-negotiable. Lugao American Type Substations are tested for short-circuit withstand—example ratings include 20 kA RMS on the high-voltage side—with post-test inspections confirming busbar joint integrity and zero structural deformation. The compact, rigid tank structure actually enhances mechanical strength by minimizing internal spans that could deflect under electromagnetic forces, assuring project engineers that our substations maintain system stability under the most demanding fault conditions.

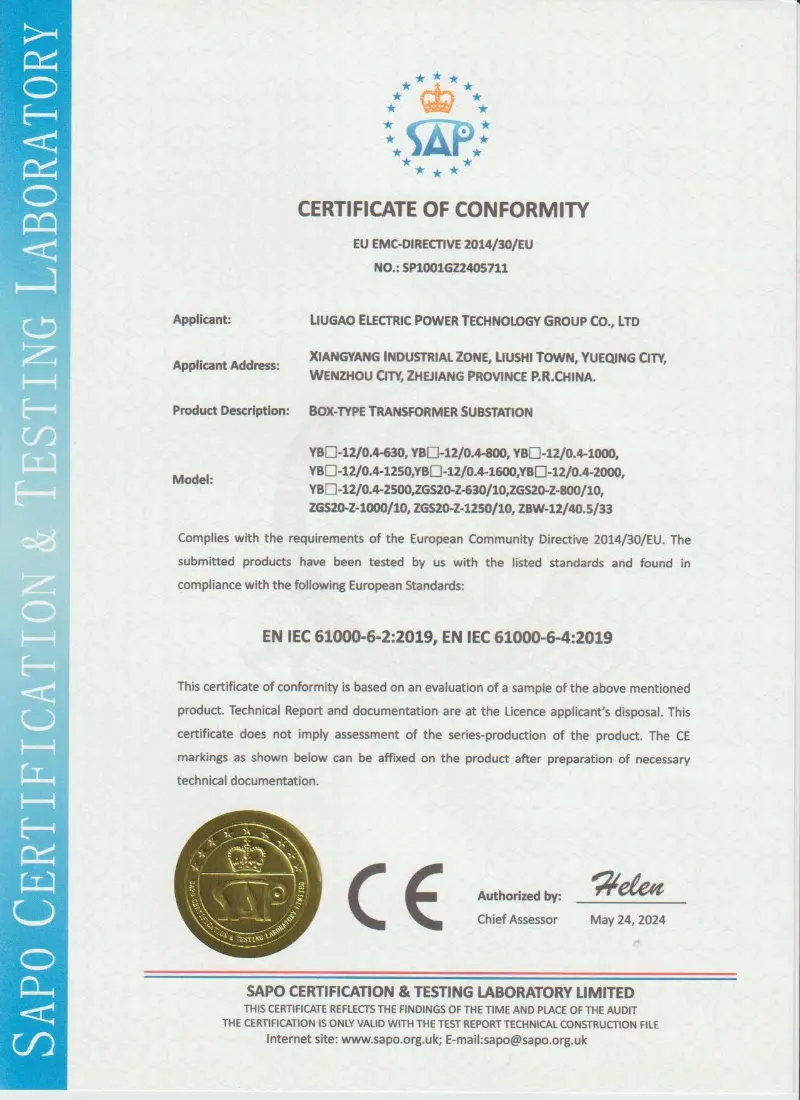

Lugao's ISO9001 and SGS-certified production workshop, equipped with professional assembly lines and full-power test bays, manufactures American Type Substations in strict accordance with ANSI, IEEE, GB, CE, and CCC international standards, supporting direct plug-and-play deployment without costly site modifications.
30kV / 35kV American Type Substation：Designed for utility distribution substations, wind farm collector systems, and heavy industrial zones requiring medium-voltage transformation with robust short-circuit withstand and low partial discharge levels. Features the compact three-compartment layout optimized for outdoor installation.

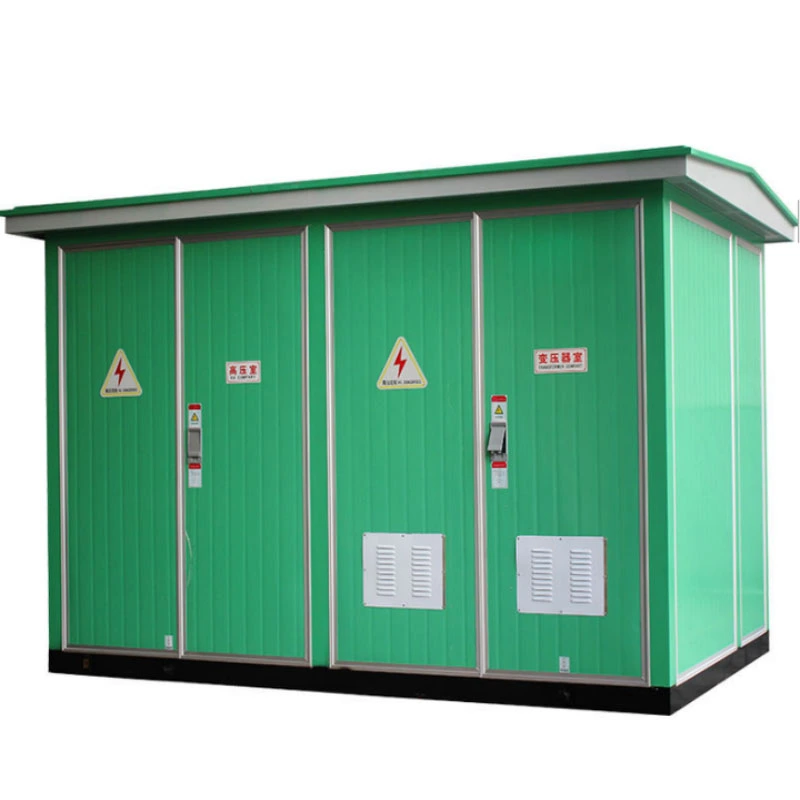

24kV (20kV) Smart/Compact Box Substation：Equipped with intelligent modules on both HV and LV sides, enabling remote control, sensing, signaling, and regulation for state grid automation applications. Suitable for urban high-rise buildings, residential houses, and municipal infrastructure.
11kV / 10kV Distribution Substation：Ideal for commercial complexes, residential communities, and rural electrification projects. Features a corrugated tank design or dry-type transformer options, eliminating conservator maintenance requirements and ensuring reliable operation in harsh outdoor environments.
Lugao offers flexible internal configurations to match specific project requirements:
· Transformer Type: Fully sealed oil-immersed (S9, S11, S13, SH15) or dry-type (SCB10, SCB11, SCBH15) options, accommodating fire-safety and environmental preferences. The sealed tank design eliminates the need for oil conservator and breather maintenance.
· High-Voltage Switchgear: XGN15, HXGN17, or KYN28A cabinets with load switch or vacuum circuit breaker configurations, supporting ring network, terminal, or dual power supply modes.
· Low-Voltage Distribution: GGD, GCS, or MNS switchgear with incoming, outgoing, and reactive compensation functions, supporting panel-type or cabinet-mounted structures.
For traditional substations with abundant floor space, conventional building-type installations remain feasible. However, urban residential communities, congested commercial districts, and roadside installations demand space-optimized solutions. American-type substations, with their compact volume (one-third to one-fifth of European-type equivalents), are particularly suited for these applications where land costs are prohibitive. Lugao offers customized footprint optimization, reducing overall ground area requirements by utilizing high-density switchgear and integrated transformer designs. The reduced footprint enables installation on small utility plots, within residential compounds, or alongside roadways without disrupting existing infrastructure.

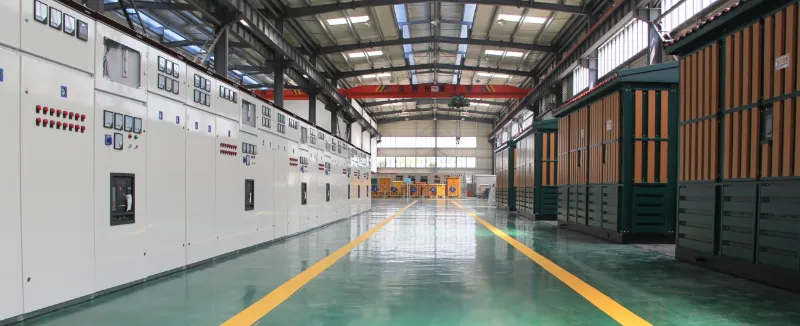

Experience Lugao's American Type Substation manufacturing excellence firsthand:
