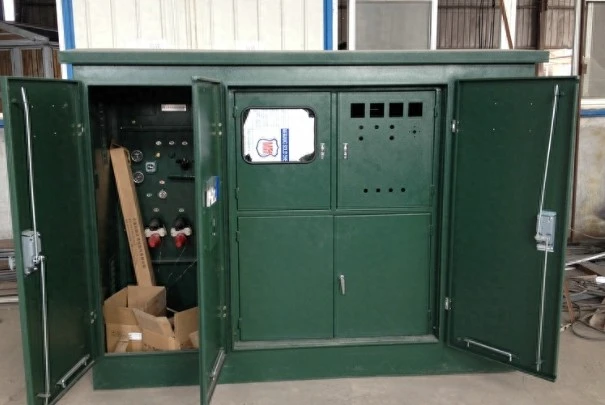

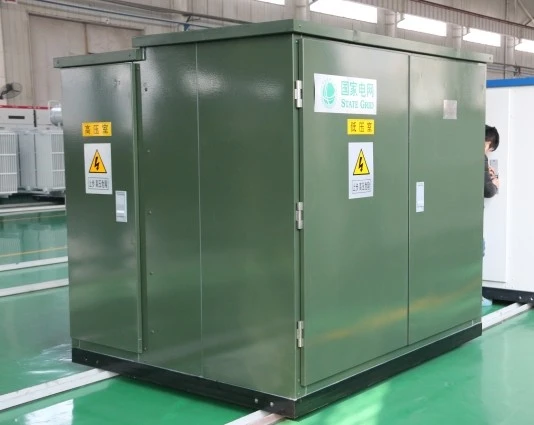

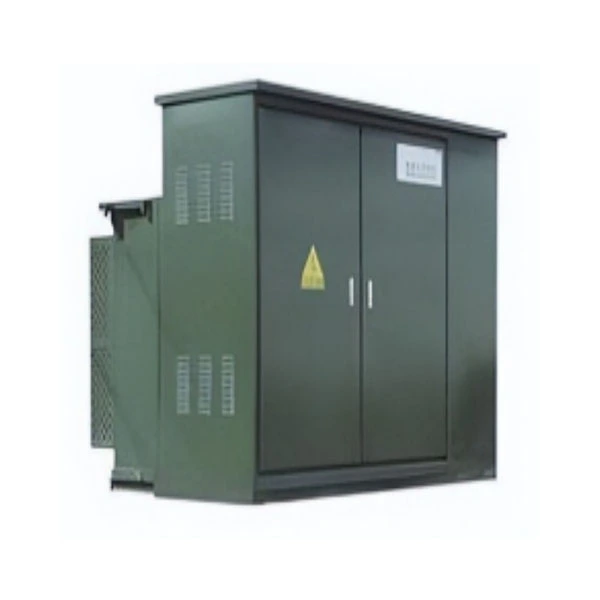

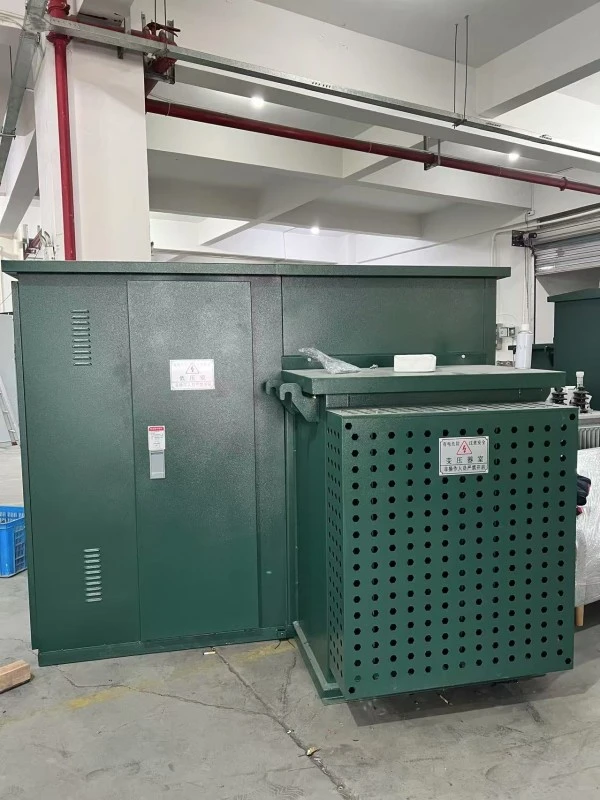

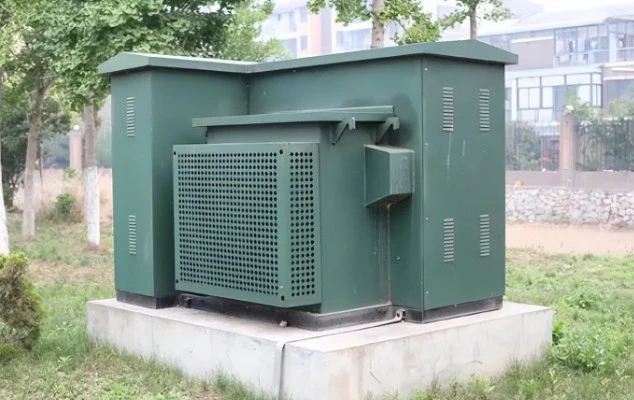

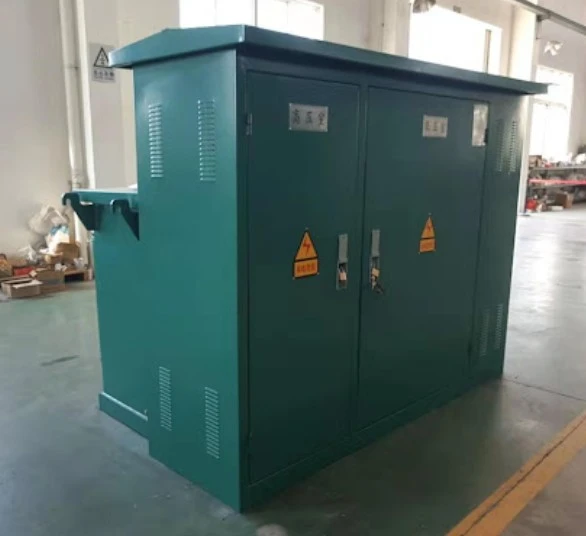

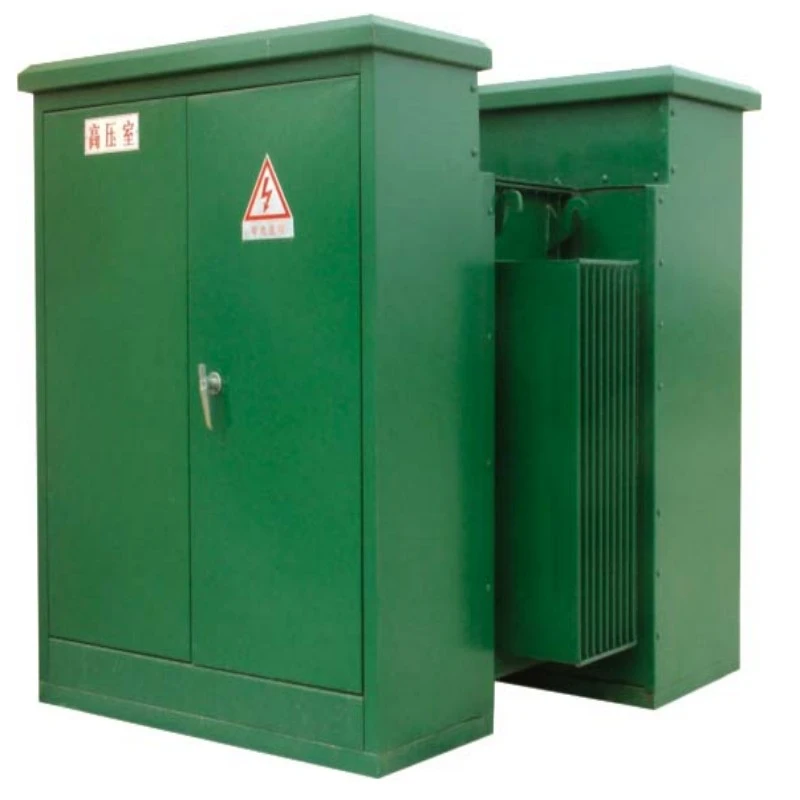

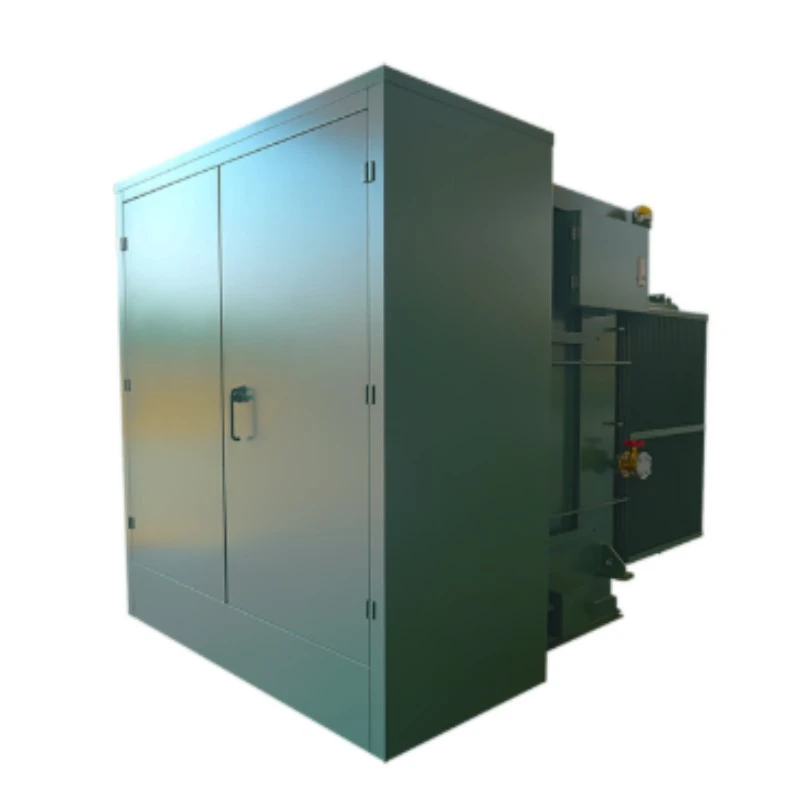

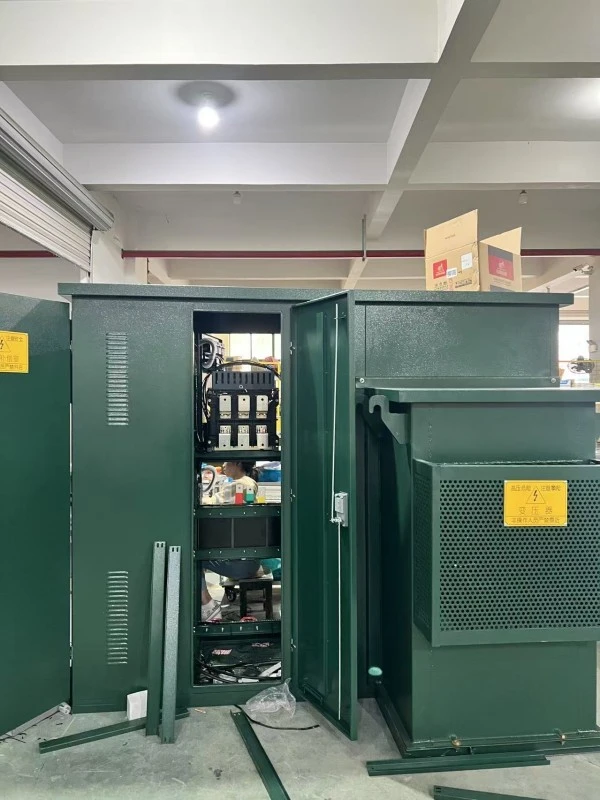

Transformer Oil Insulation Box-Type Compact American Type Substation

The Transformer oil insulation Box-Type Compact American type Substation is a fully integrated, prefabricated power distribution solution. By definition, it is a compact, skid-mounted assembly that combines a high-voltage switchgear, an oil-immersed power transformer, and low-voltage distribution panels within a single, sealed metal enclosure.

What it is:

Unlike traditional European-style substations that separate components, this American-type unit uses the transformer oil as both an electrical insulator and a cooling medium. The transformer tank is structurally integrated with the enclosure, creating a unified, "box-type" form factor.

What it does:

This substation is designed to transform high-voltage primary electricity (typically 12kV to 36kV) into low-voltage usable power (208V to 480V) . It performs three critical functions:

1. Voltage Step-Down: Reduces medium voltage to utilization voltages.

2. Protection: Houses fuses and breakers to protect downstream grids from faults.

3. Distribution: Manages and distributes power to residential communities, commercial centers, or industrial facilities.

The Transformer oil insulation Box-Type Compact American type Substation excels in environments where space is at a premium but reliability cannot be compromised. It eliminates the need for a separate fenced yard or a concrete vault, as all live parts are fully enclosed.

Product Parameter (Specification)

Product Feature And Application

Q1: What makes the Transformer oil insulation Box-Type Compact American type Substation different from a standard pad-mounted transformer?

A1: The difference lies in integration. A standard pad-mounted transformer is just a transformer. Our Box-Type Compact American type Substation includes a high-voltage compartment with load break switches and fuses, plus a low-voltage breaker panel. It is a "substation in a box," whereas a standard unit is simply a transformer. The oil insulation also provides superior arc-quenching capability during faults.

Q2: How does the oil insulation benefit my operation in extreme climates?

A2: Transformer oil has a higher dielectric strength than air and significantly better thermal conductivity. In hot climates (up to 50°C), the oil absorbs heat from the core and coils, dissipating it through the corrugated tank walls. In cold climates, the oil maintains stable viscosity, preventing internal arcing. This makes the Transformer oil insulation Box-Type Compact American type Substation ideal for deserts, coastal regions, and snowy mountain passes.

Q4: Can I customize the low-voltage output configuration?

A4: Yes. We offer configurable low-voltage panels with 2 to 8 ways, including MCCB (Molded Case Circuit Breaker) outputs. You can also add metering compartments, lightning arresters, and automatic power factor correction capacitors.

Application Scenarios

1. Residential Subdivisions: Powers underground feeder networks for housing complexes.

2. Wind & Solar Farms: Steps up generator voltage or steps down grid voltage for auxiliary power.

3. EV Charging Stations: Provides dedicated 480V-3 phase power for fast DC chargers.

4. Industrial Parks: Serves as a temporary or permanent compact substation for construction power.

5. Urban Renewal Projects: Replaces old vault-type transformers where flooding is a risk.

Production Details & Competitive Advantages

Detailed Components:

● Tank Construction: Our tank uses 2.5mm – 3.0mm cold-rolled steel (competitors often use 1.5mm). The corrugated fins are robotically welded for 100% oil leak prevention.

● Core & Windings: We use high-permeability grain-oriented silicon steel (M4 grade). The copper windings (not aluminum) are fully annealed to reduce hysteresis loss.

● Oil Quality: We fill with inhibited transformer oil (IEC 60296 standard) with a breakdown voltage >60kV. Optional: Natural ester (vegetable oil) for biodegradable requirements.

● HV Switch: Includes a 4-position load break switch (Closed/Open/Grounded/Connected) with visible break indicators.

● Paint System: 5-step pre-treatment + zinc-rich epoxy primer + polyester top coat. Salt spray tested for 500+ hours.

Production Advantages vs. Competitors:

Frequently Asked Questions

Q1: The Transformer oil insulation Box-Type Compact American type Substation arrived with low oil pressure. Is it leaking?

A: No. We ship units with a small nitrogen blanket to prevent oxidation. The pressure gauge may read zero. After filling with fresh oil to the level indicator (approximately 5-10cm above the core), let it settle for 6 hours. If the level drops again within 24 hours, contact us for a seal inspection.

Q4: Do you provide spare parts for the Transformer oil insulation Box-Type Compact American type Substation?

A: Yes. We stock high-voltage fuses (bay-o-net style), low-voltage breakers, oil level gauges, pressure relief valves, and gasket kits for 10+ years. Order any spare part via our web portal for 48-hour dispatch.

Q5: How do I test the oil quality after 2 years of operation?

A: Use an oil dielectric strength tester (ASTM D877). Take a sample from the bottom drain valve. The dielectric strength should be >30kV. If it falls below 20kV, filter the oil or replace it. We recommend annual dissolved gas analysis (DGA) for units above 1000kVA.

Q6: Is the Transformer oil insulation Box-Type Compact American type Substation compatible with smart grid systems?

A: Absolutely. Optional add-ons include: 4G/5G remote monitoring units (oil temperature, pressure, load current) and RS485/Modbus RTU ports. You can integrate it directly into your SCADA system.

After-Sales Service

Warranty Period: 12 months from the date of commissioning or 14 months from the shipping date (whichever comes first).

Coverage: All manufacturing defects including core failure, winding short circuits, oil leaks from welds, and switchgear mechanical failure.
