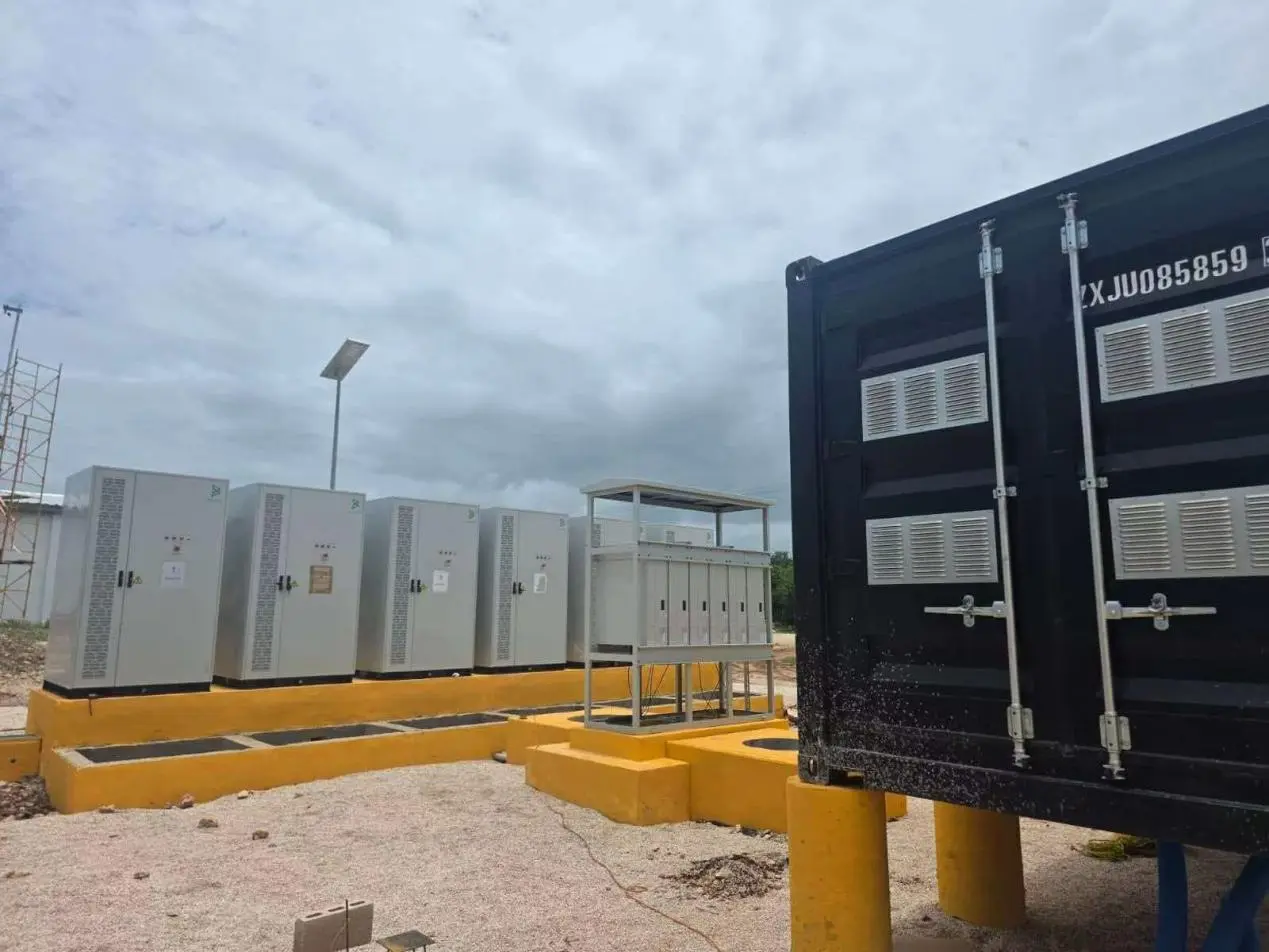

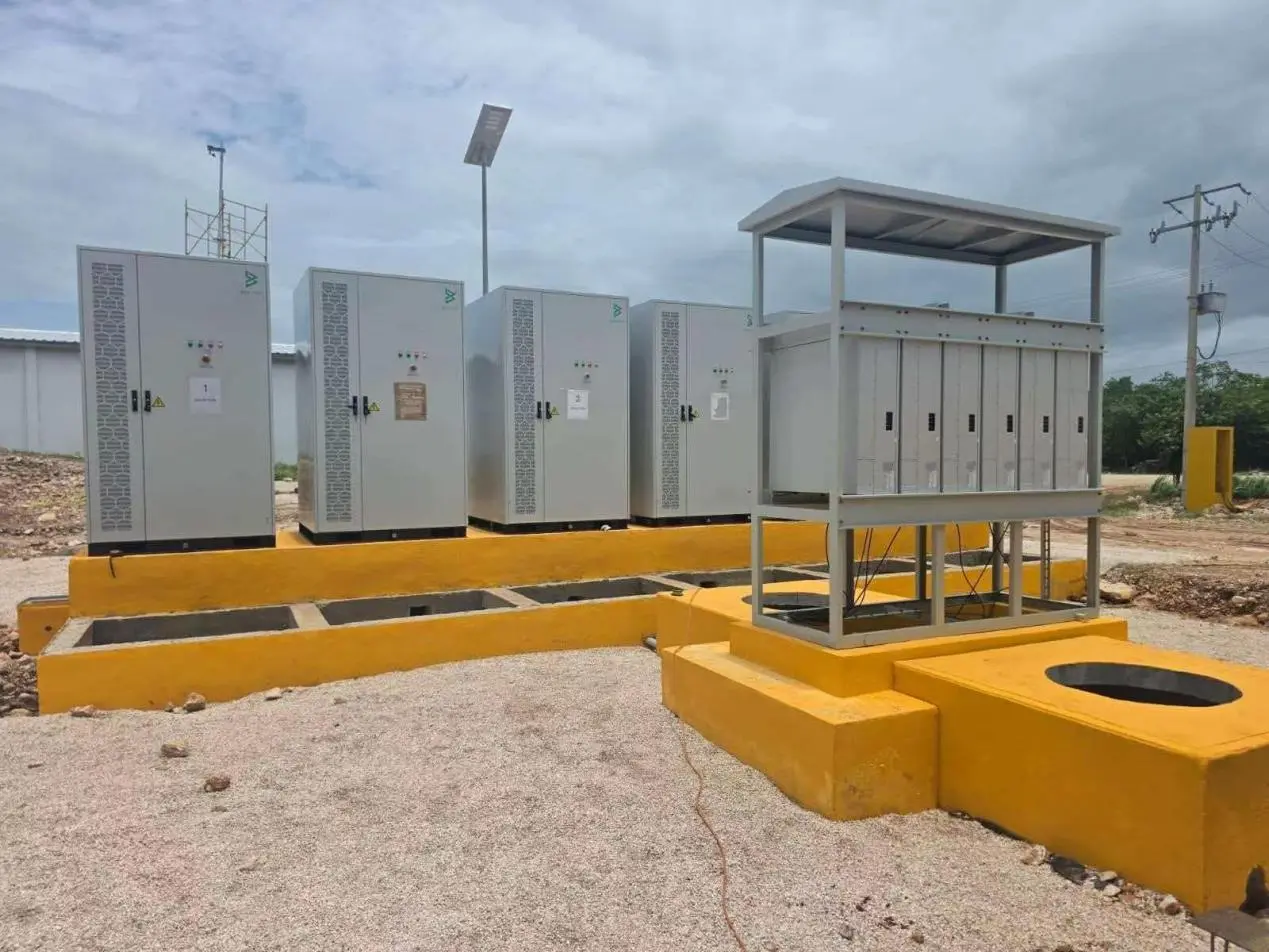

On the left side of the panel, there are four independent outdoor photovoltaic inverter control cabinets; on the right side, a matching open-type low-voltage combiner distribution frame with a rainproof canopy is installed. All equipment is mounted on elevated yellow concrete bases, which feature built-in cable trenches to ensure cable entry and exit at the bottom, thereby preventing erosion from ground-level rainwater and moisture.
Inverter control cabinet: IP54-rated outdoor protection enclosure featuring large-area side convective cooling louvers and dust filters, with integrated operation buttons, status indicators, and fault alarms on the front panel. Each unit operates independently within its designated zone, allowing maintenance of individual units without affecting the entire power generation system.
Low-voltage distribution frame: features an open rainproof roof design with natural heat dissipation for tropical high-temperature environments, equipped with six internal output ports to aggregate power from multiple inverters and simplify on-site wiring. The facility includes solar-powered monitoring and lighting poles that operate without external mains power, meeting nighttime operation, maintenance, and security surveillance requirements.

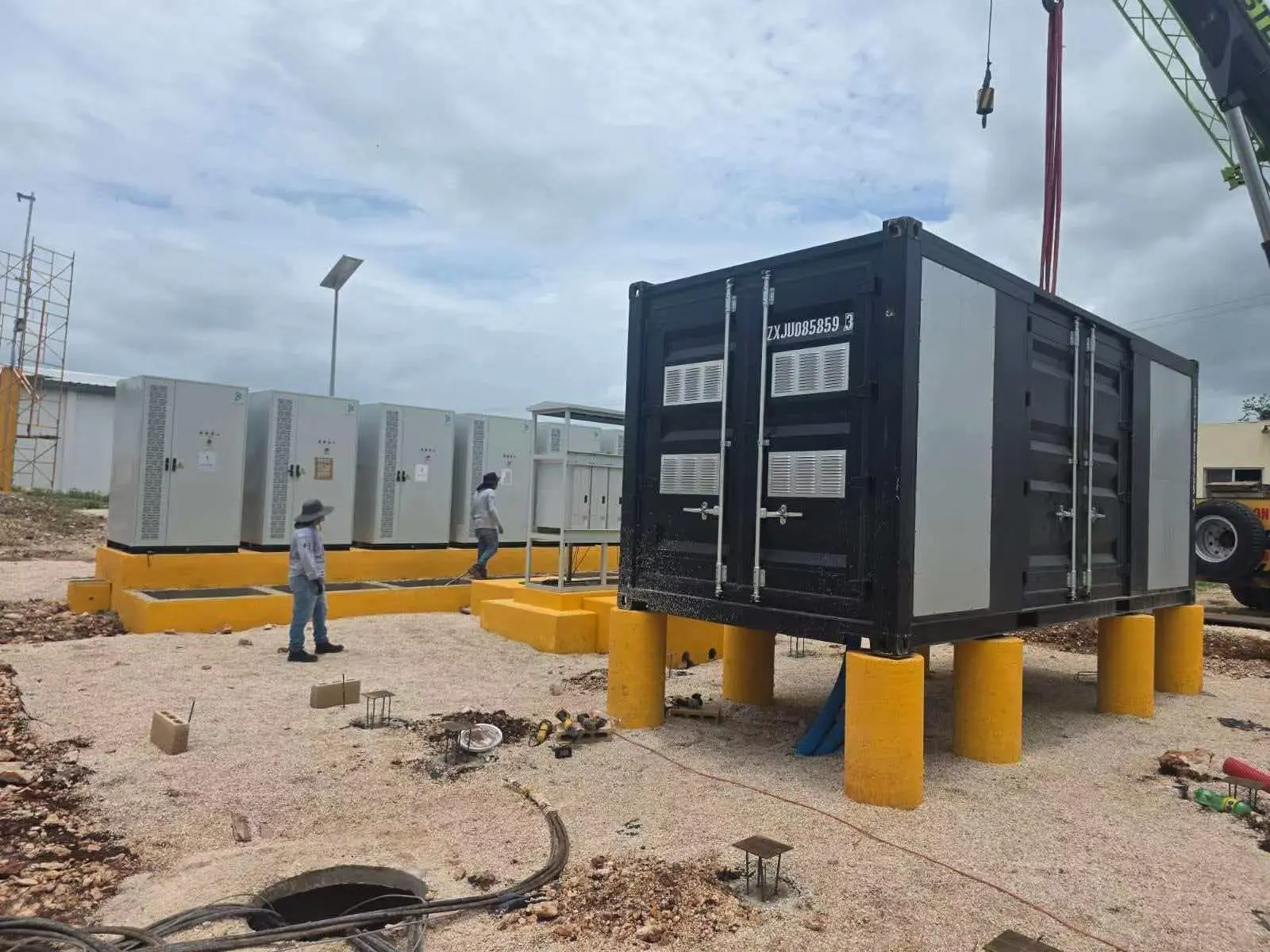

The integrated black containerized substation has been delivered to the site, forming a complete photovoltaic power distribution system together with the rear-mounted inverter cabinet and combiner cabinet. Both sides of the container are equipped with rain-resistant ventilation louvers and feature built-in dust-proof and water-resistant structures to enhance heat dissipation in high-temperature environments. The container is coated with an outdoor weather-resistant coating that provides protection against ultraviolet radiation and salt spray corrosion, making it suitable for long-term operation in open-air conditions in Mexico.

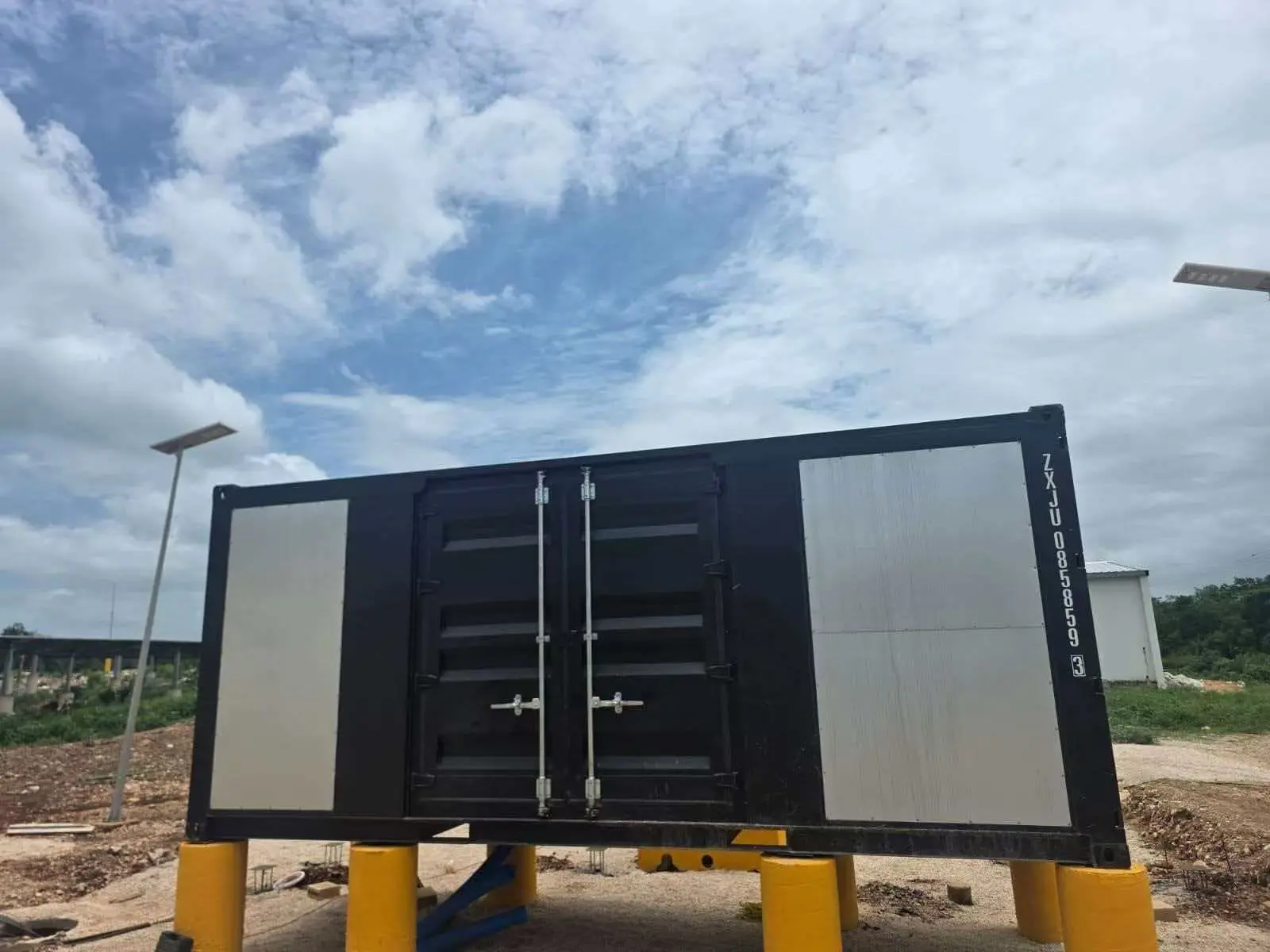

Standardized containerized unit design with dual-door access channels and side maintenance panels for easy internal equipment servicing; the compartmentalized ventilation structure ensures optimal heat dissipation while providing waterproof and dustproof protection, making it suitable for centralized step-up and grid connection applications in megawatt-scale photovoltaic power plants.
1.Prefabricated integrated delivery: All equipment is pre-assembled and tested in the factory, significantly reducing overseas on-site construction and commissioning time, shortening the overall project delivery cycle, and lowering total labor costs for the general contractor.
2.The entire industrial chain features comprehensive supply capabilities, with transformers, switchgear cabinets, current transformers, protection relays, and inverter cabinets all manufactured in-house under unified technical standards, ensuring convenient procurement of spare parts and equipment maintenance.
3.Customized for tropical climates, this solution specifically optimizes thermal management, moisture resistance, and corrosion-resistant structures tailored to Latin America's hot and rainy conditions, effectively addressing common operational challenges such as equipment shutdowns due to high temperatures and rusting in outdoor power plants.
4.Compliant with local grid specifications, its overall parameters meet Mexican electrical standards, enabling direct grid connection approval by local power companies, and making it suitable for replication and deployment in photovoltaic energy storage projects across Mexico, Central America, and the Caribbean region.
This Mexican integrated photovoltaic and energy storage prefabricated substation project employs a modular, comprehensive power distribution solution specifically optimized for the region's tropical, hot, and rainy climate, featuring specialized improvements in moisture resistance, heat dissipation, and corrosion protection. Utilizing a construction approach combining factory prefabrication with rapid on-site installation, it achieves full-chain integration of photovoltaic inversion, current collection and distribution, and voltage boosting for grid connection. The solution demonstrates high standardization and serves as a benchmark case for tropical renewable energy power stations in Latin America, suitable for promotion to overseas PV and energy storage turnkey clients.
