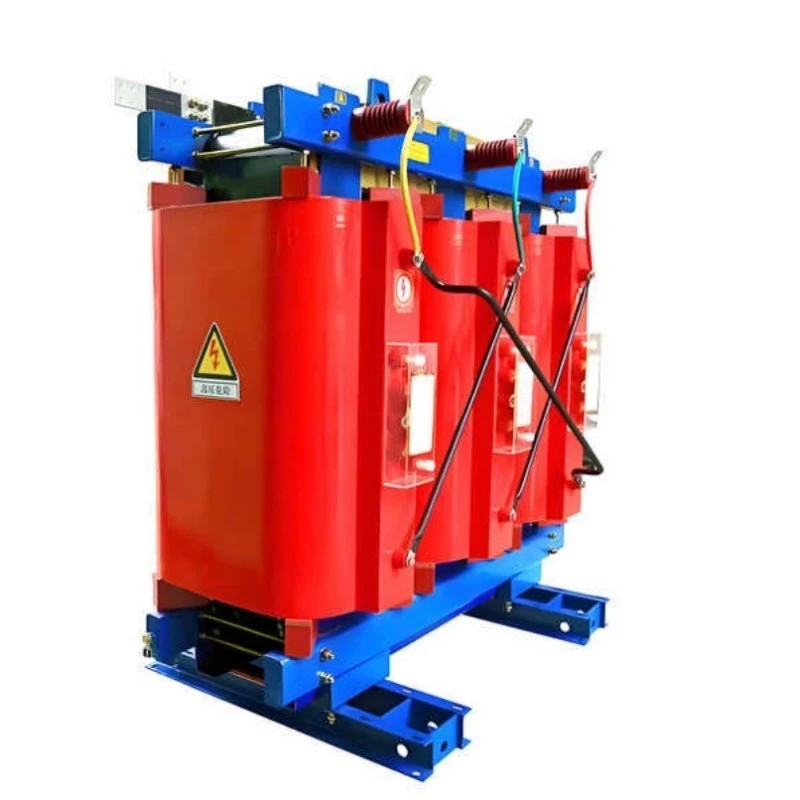

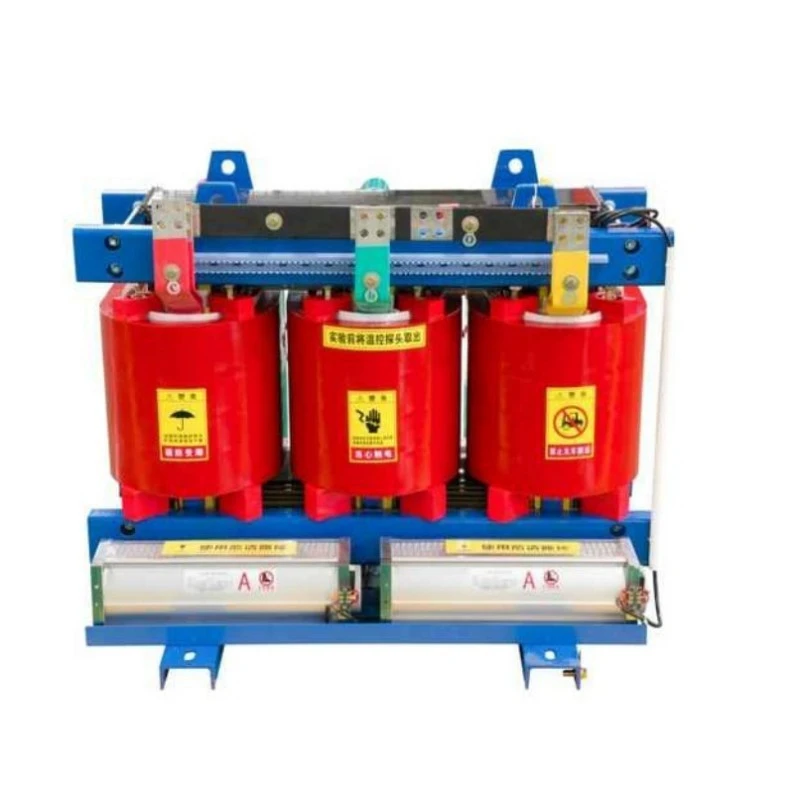

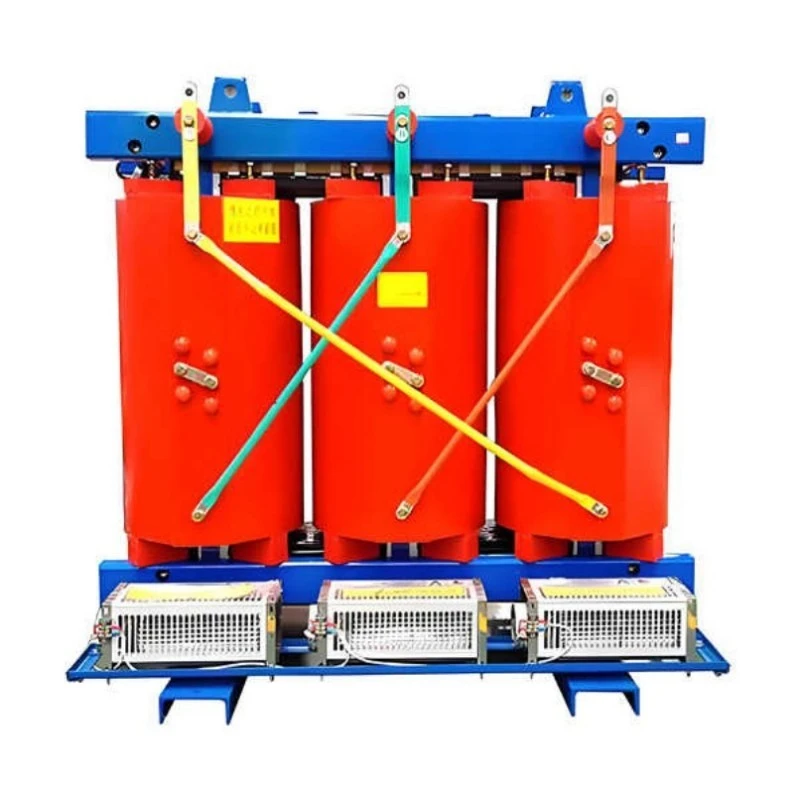

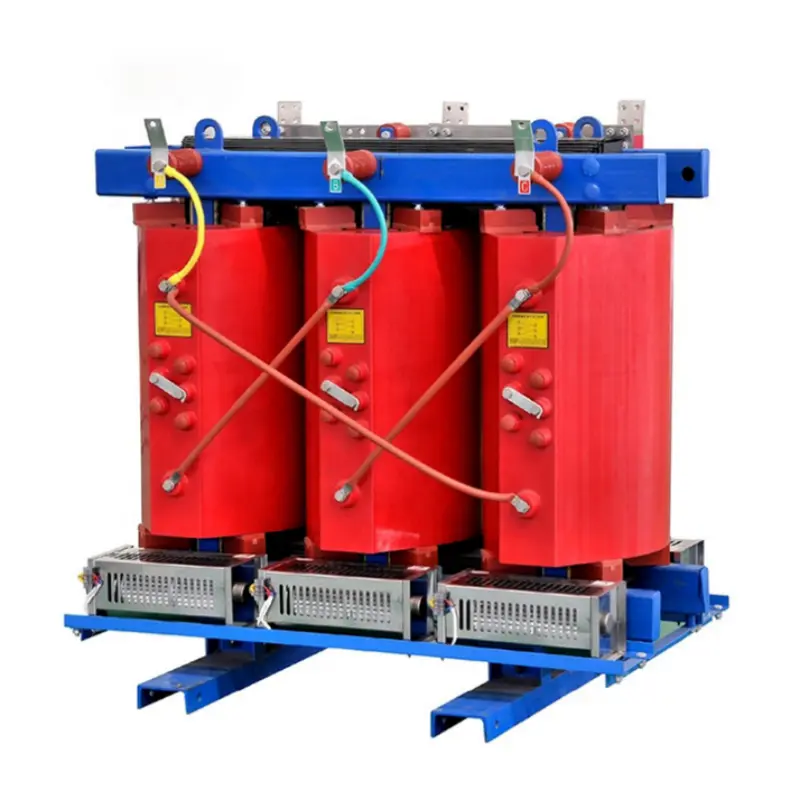

Three Phase Pad Mounted Auto Isolation Dry Type Transformer

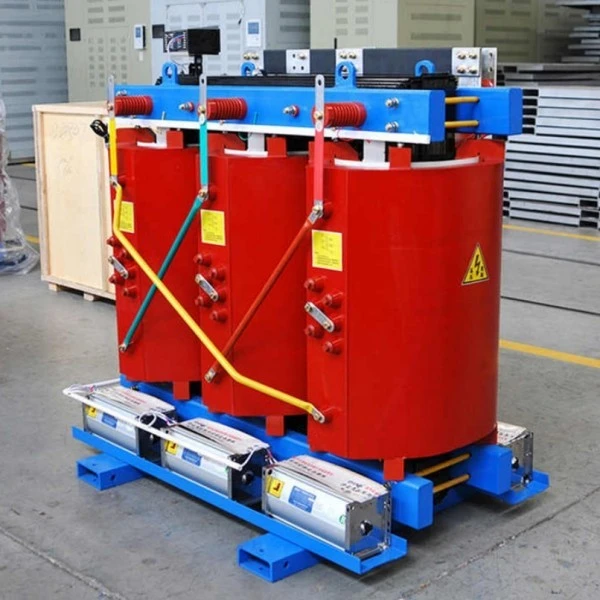

What exactly is a Three Phase Pad Mounted Auto Isolation Dry Type Transformer? Unlike traditional oil-filled transformers that require a fenced enclosure and fluid containment, this unit is a self-cooled, static device mounted directly on a concrete pad. It serves two critical functions: Auto-transformation for voltage regulation (stepping up or down) and Isolation to create a galvanic barrier between input and output.

In the context of renewable energy, data centers, and industrial automation, this device acts as a noise filter. It cleans dirty power, eliminates neutral-to-ground bonds where necessary, and provides common mode noise rejection. The "Pad Mounted" design means it sits securely on a ground-level pad, easily accessible yet lockable for security. By choosing our Three Phase Pad Mounted Auto Isolation Dry Type Transformer, you are choosing a "plug-and-play" solution that reduces installation time by eliminating the need for vaults or oil containment pits.

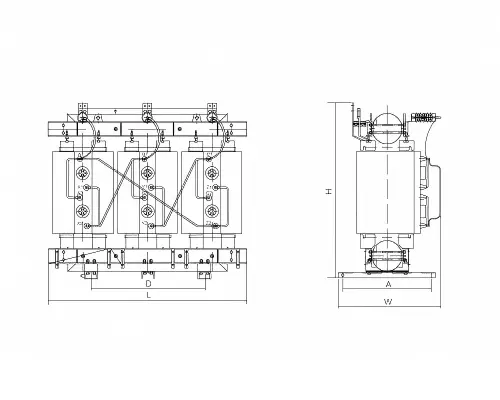

Product Parameter (Specification)

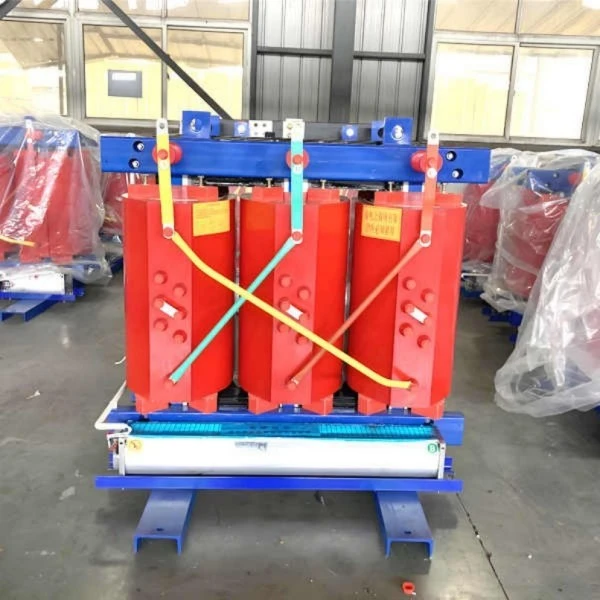

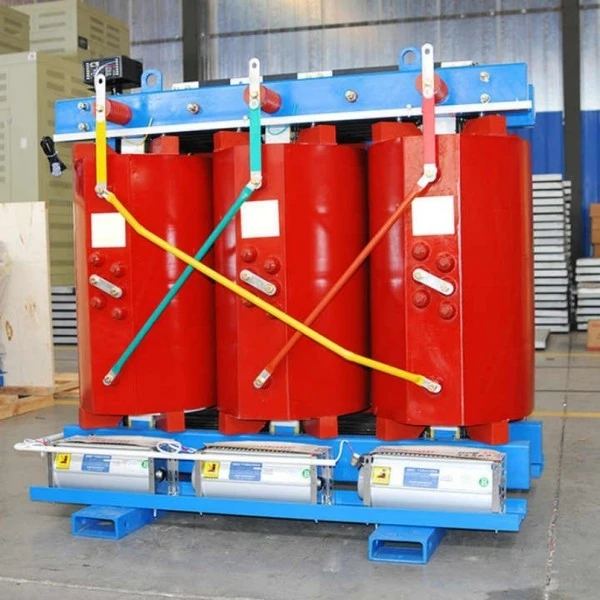

Product Feature and Application

The Three Phase Pad Mounted Auto Isolation Dry Type Transformer distinguishes itself through high-strength construction and electrical performance. This unit is specifically optimized for outdoor environments where moisture and dust are concerns.

Key Features:

1. Auto-Isolation Hybrid: Reduces kVA size requirements for autotransformer portions while maintaining full isolation for sensitive electronics.

2. Eco-Friendly: Zero oil spill risk, making it ideal for environmentally sensitive areas (near water reservoirs or residential complexes).

3. Low Noise: Operating sound levels are kept below 55dB, ensuring silent operation in noise-restricted zones.

4. High BIL Ratings: Withstands impulse surges from lightning strikes, ensuring grid resilience.

Q&A: Why choose this specific design for your project?

Q: I am an electrical contractor. Why should I specify a pad-mounted unit instead of a standard dry-type in a building?

A: Safety and space. A standard dry-type is often for indoor use. Our Three Phase Pad Mounted Auto Isolation Dry Type Transformer features a NEMA 3R weatherproof enclosure specifically designed for outdoor slab mounting. It allows you to move the transformer outside, freeing up valuable real estate inside your facility and eliminating the need for a dedicated fire-rated transformer room. Furthermore, the "auto-isolation" feature ensures you don't need two separate units for voltage adjustment and power conditioning.

Q: Does this transformer protect against harmonic distortion?

A: Yes. The "Isolation" aspect of our Three Phase Pad Mounted Auto Isolation Dry Type Transformer is crucial here. By physically separating the primary and secondary windings (unlike a standard autotransformer), we create a high-impedance path for zero-sequence currents (triplen harmonics). This effectively traps harmonics generated by non-linear loads (like VFDs or chargers) on the load side, preventing them from reflecting back and distorting the utility supply.

Q: Can I backfeed this unit?

A: While technically possible, we do not recommend backfeeding a standard unit without consulting us. If your application requires reverse feed (e.g., for generator step-up), Lugao Power can customize the tap configuration and flux density specifically for reverse feed operation to prevent core saturation .

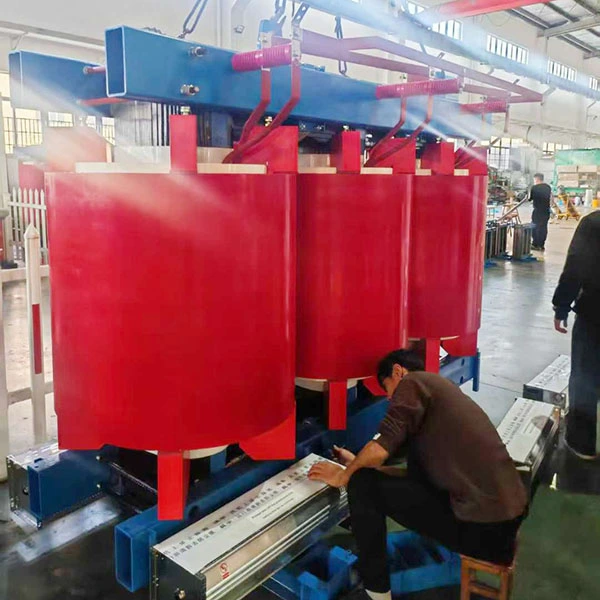

Production Details & Quality Assurance

Production Transparency

Every Three Phase Pad Mounted Auto Isolation Dry Type Transformer from Lugao Power undergoes a rigorous 10-step quality control process. We utilize Vacuum Pressure Impregnation (VPI) technology. This process ensures that the Class H resin penetrates every microscopic gap in the copper windings, resulting in a void-free solid core that resists corrosion, moisture, and partial discharge.

1. Core: Grain-oriented silicon steel (MOH) with step-lap joints to reduce hysteresis loss.

2. Winding: High-grade oxygen-free copper (100%), never aluminum substitutes.

3. Testing: 100% routine tests (Winding resistance, turns ratio, no-load loss, Hi-Pot) and witnessed type tests available.

Certifications

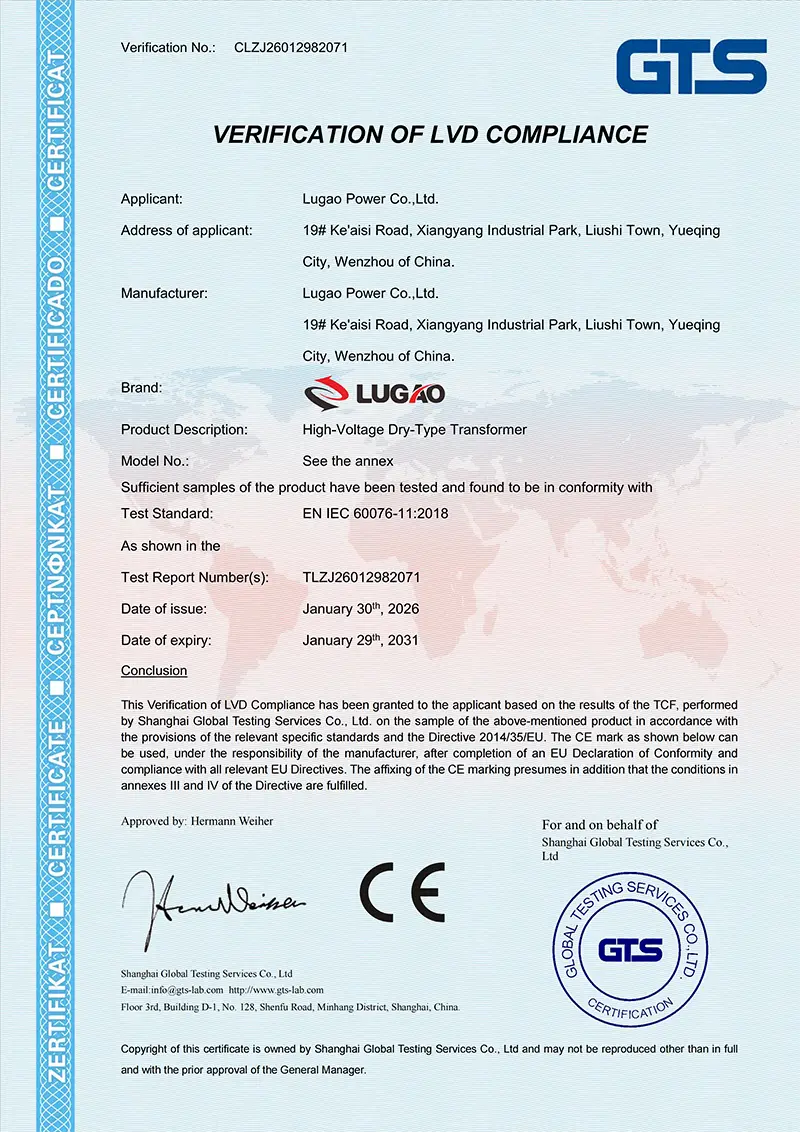

All units comply with:

● ISO 9001:2015 (Quality Management)

● IEC 60076-11 (Dry-type transformers)

● ANSI/IEEE C57.12.01 (General requirements)

Applications & Case Studies

1. The robust design of the Three Phase Pad Mounted Auto Isolation Dry Type Transformer makes it the backbone of modern infrastructure.

2. Renewable Energy (Solar/Wind): Used to step up inverter voltage (e.g., 380V to 34.5kV) and provide isolation for grid-tie systems. Case studies show a 15% reduction in nuisance tripping due to our superior isolation of grid transients .

3. EV Charging Stations: Pad-mounted design allows it to sit conveniently at the edge of parking lots, converting 480V Delta utility power to 208Y/120V for Level 2 and Level 3 chargers.

4. Data Centers: Provides clean, isolated power to IT racks, eliminating ground loops and common-mode noise that corrupts data.

5. Industrial Automation: Powers VFDs and PLCs in harsh outdoor mining or chemical plant environments.

Why Choose Lugao Power?

Our benefits:

1. Lead Time: Standard sizes ship in 4 weeks (50% faster than industry average).

2. Seismic Certification: Units are braced to withstand seismic events (IBC 2018 compliant).

3. Direct Support: You talk to our engineers, not chatbots.

FAQ:

Q: What is the life expectancy of this dry-type unit?

A: With our VPI resin system and Class H insulation, the expected lifespan is 30+ years. Lower operating temperatures (thanks to our efficient core design) extend the insulation life significantly compared to standard dry-types .

Q: How do I handle condensation in the cabinet?

A: Our NEMA 3R enclosure is designed with drip shields and louvers. However, for high-humidity coastal areas, we offer an optional Low-Wattage Space Heater with a hygrostat. This keeps the internal air circulating and prevents "sweating" on the coils during off-hours.

Q: Do you offer warranty on the Three Phase Pad Mounted Auto Isolation Dry Type Transformer?

A: Yes. Lugao Power Co., Ltd. provides a standard 12-month warranty from the date of commissioning (or 18 months from shipment, whichever is sooner). This covers all manufacturing defects in materials and workmanship.

After-Sales Support

We believe in a relationship, not just a transaction. Our service package includes:

12-Month Standard Warranty: Extendable to 5 years with a service contract.

Spare Parts: Thermal sensors, fans (for forced cooling options), and gaskets stocked globally.

Remote Diagnostics: For units with smart sensors, our team can predict failures before they happen.
