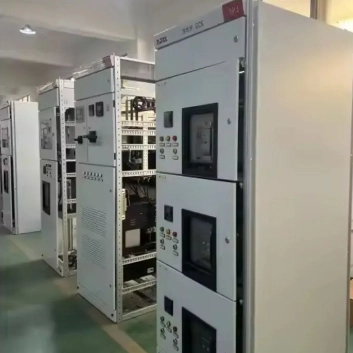

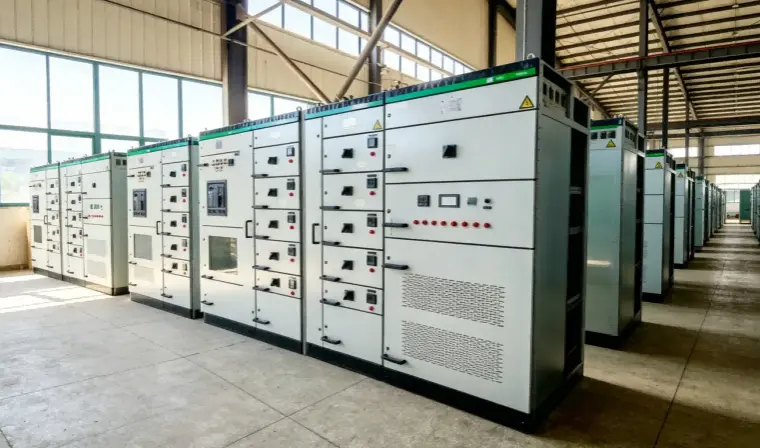

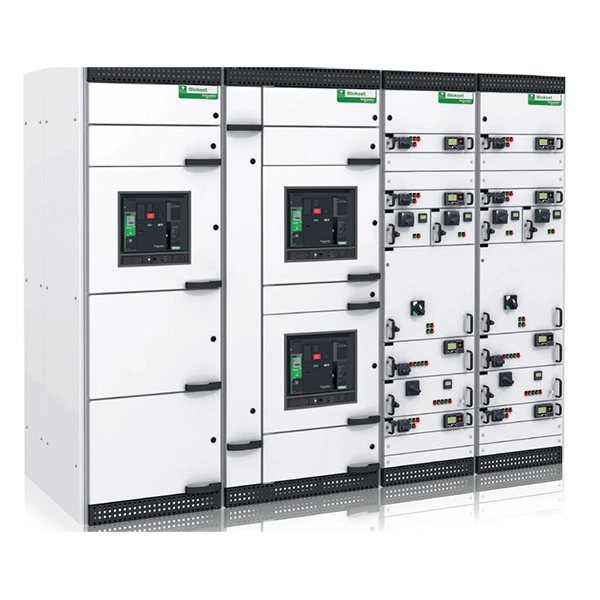

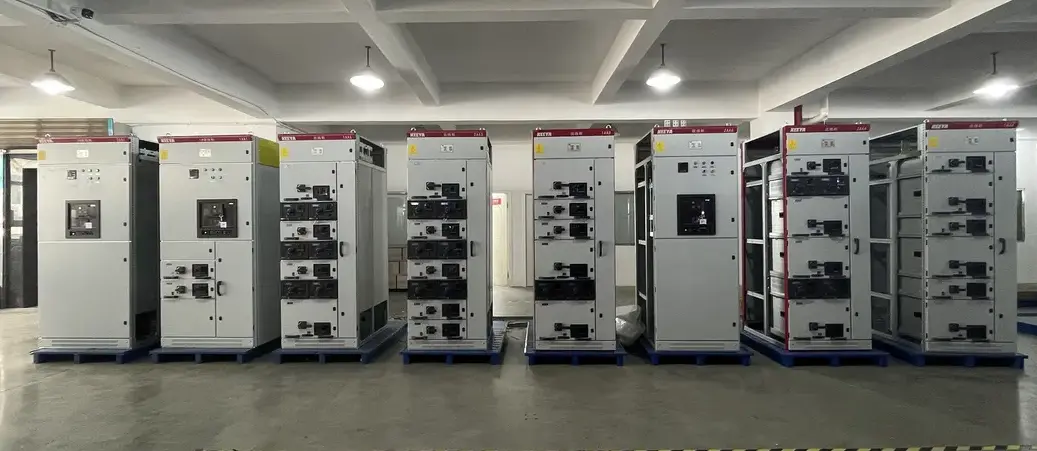

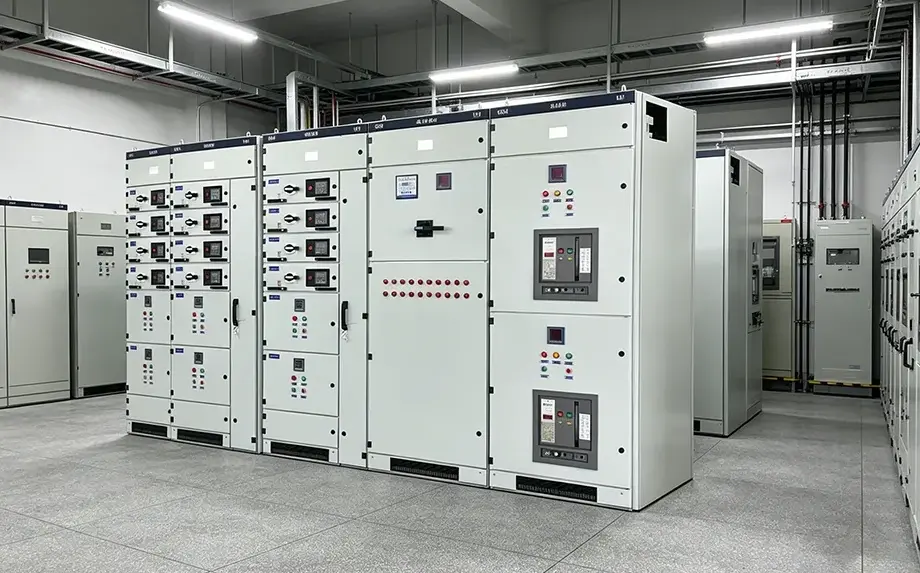

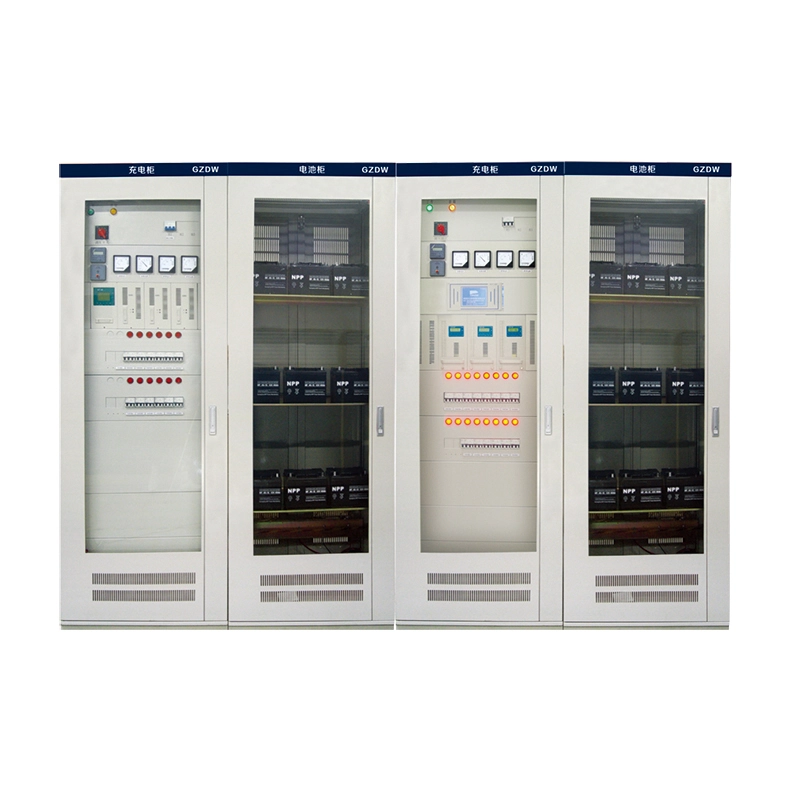

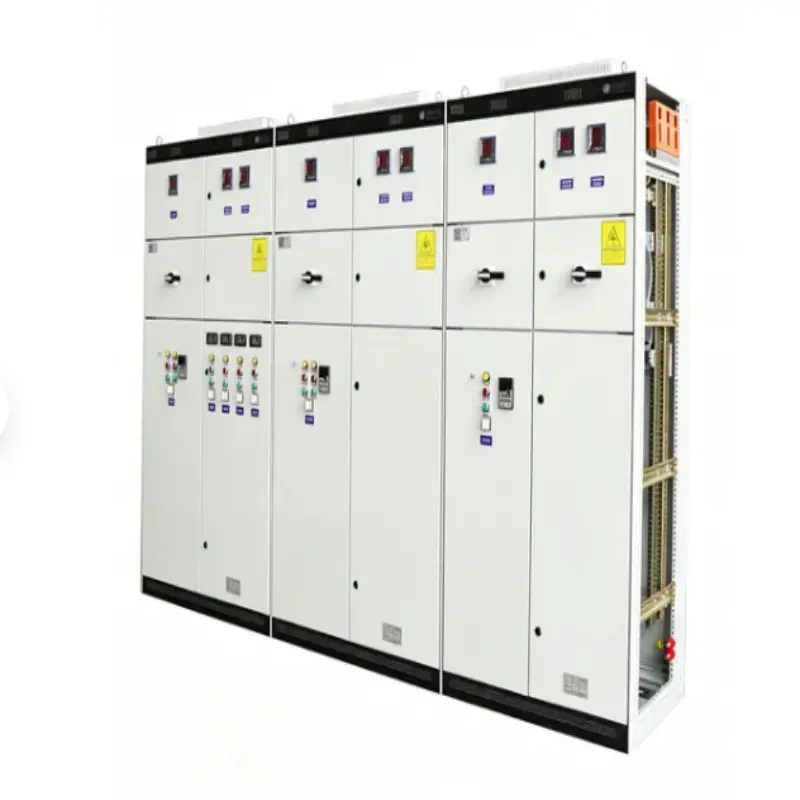

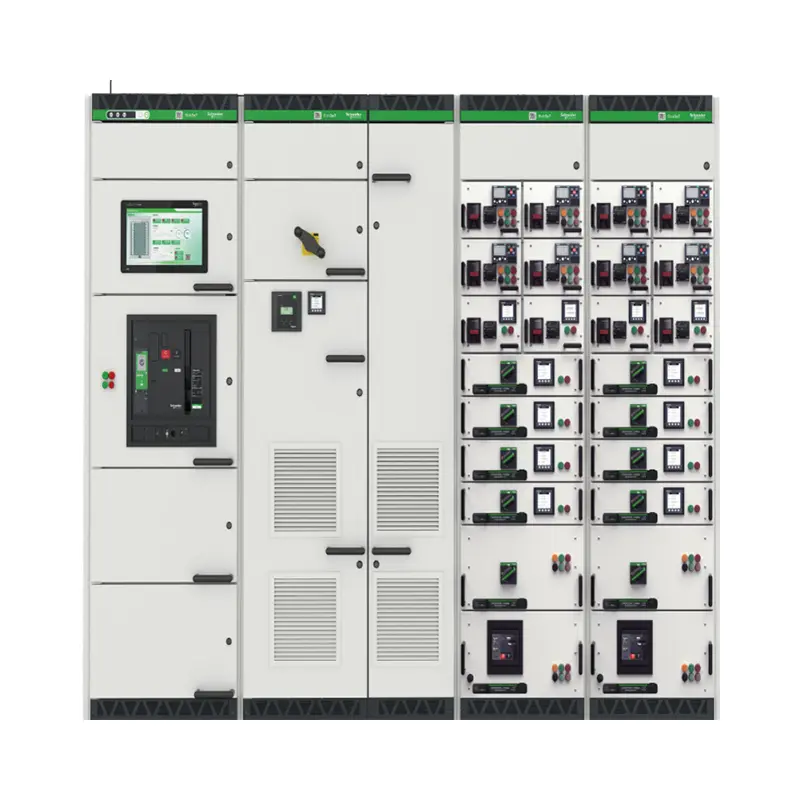

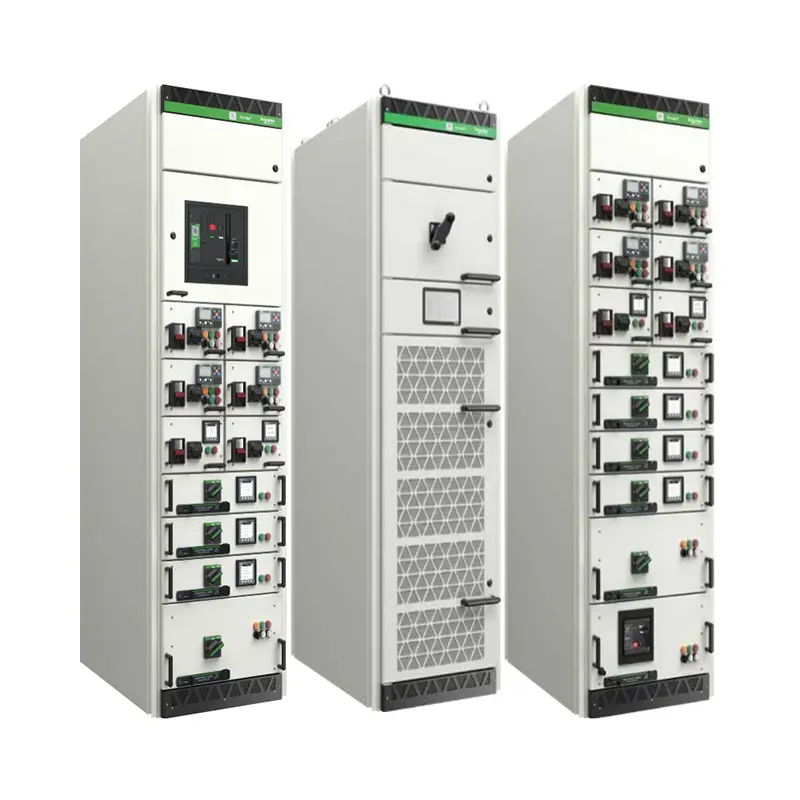

Intelligent Power Distribution Drawer-Type Panel Switchgear

The Intelligent Power Distribution Drawer-Type Panel Switchgear from Lugao Power Co., Ltd. is a high-performance low-voltage assembly that combines intelligent protection, metering, and communication. Unlike traditional fixed panels, this drawer-type version allows each circuit unit to be inserted or withdrawn without shutting down the entire system. Each drawer houses a dedicated circuit breaker, controller, and sensors. The "intelligent" capability comes from built-in power quality analyzers, Modbus TCP/IP or Profibus communication, and automatic failure alerts. The Switchgear is suitable for AC 690V, 50/60Hz systems, rated current up to 6300A. It meets IEC 61439-1/2 and GB/T 7251 standards.

Product Features and Application (With Q&A Format)

This section addresses common buyer concerns and highlights the engineering advantages of the Intelligent Power Distribution Drawer-Type Panel Switchgear.

Q1: How does the drawer mechanism improve maintenance?

A: The unit features a three-position drawer (connected/test/disconnected) with mechanical interlocks. You can replace a faulty drawer in under 60 seconds without turning off adjacent circuits. This is a key benefit of the Intelligent Power Distribution Drawer-Type Panel Switchgear for critical facilities.

Q2: What"intelligent" functions are built-in?

A: Real-time voltage, current, power factor, and harmonics monitoring. Automatic alarm on overload, short circuit, or temperature rise. Data logs can be exported via RS485 or Ethernet. Remote trip/close control from a central SCADA system.

Q3: Is the drawer mechanism reliable after many insertions?

A: Yes. Each drawer is tested for 5,000 mechanical operations and 1,000 electrical operations without performance degradation. The contacts are silver-plated with spring-loaded pressure.

Q4: Where can this product be installed?

Application List:

1. Data Centers: For redundant power paths and minimal MTTR (Mean Time To Repair).

2. Hospitals: Critical life-support circuits require uninterrupted power.

3. Industrial Plants: Motor control centers (MCC) for conveyors, pumps, and compressors.

4. Commercial Complexes: Mall lighting and HVAC distribution.

5. Renewable Energy: Solar/wind integration with smart grid feedback.

Product Parameters (Specification)

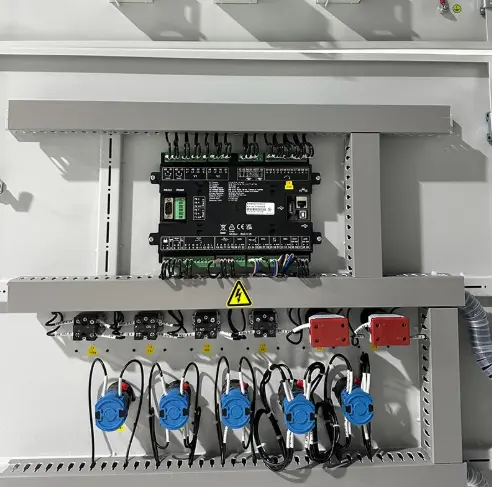

Production Details (Quality & Manufacturing)

1. Enclosure: 2.0mm cold-rolled steel plate, electro-galvanized and powder-coated (RAL 7035). Corrosion resistance >500 hours salt spray test.

2. Drawer Mechanism: High-precision guide rails with self-locking handle. IP20 finger-safe protection inside drawer compartments.

3. Busbar System: Rectangular copper busbars (98% IACS conductivity), fully insulated by heat-shrink sleeves.

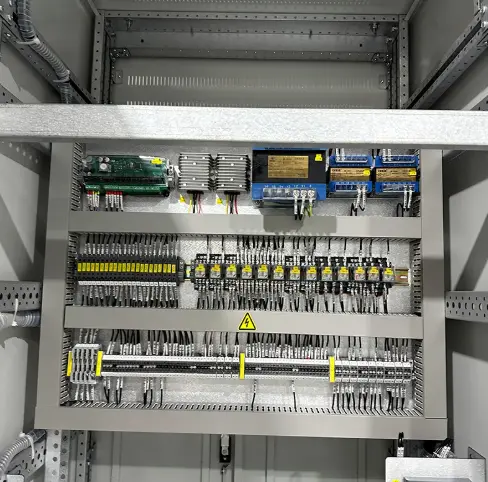

4. Wiring: UL1015 or 60245 IEC certified cables, labeled with dual numbers and color codes.

5. Testing: Every assembled unit undergoes:

● Dielectric voltage withstand (3000V AC for 1 min)

● Primary and secondary injection test

● Drawer mechanical operation test

● Temperature rise test at full rated current

Packaging & Delivery

1. Packaging:

Each drawer is individually wrapped in anti-static PE film. The main panel is protected by edge protectors and strapped on a fumigated wooden pallet. All enclosures are covered with bubble wrap and PP woven fabric. IP54-rated outdoor units get an additional waterproof laminated cover.

2. Shipping Mark:

● ugao Power logo, order number, weight, dimension, and”Fragile–Electronic Components”label.

3. Delivery:

● Manufacturing lead time: 25–35 working days after drawing approval.

● Port: Shanghai / Ningbo.

● Shipping: Sea freight (FCL or LCL), air freight for urgent spare drawers.

Frequently Asked Questions

Q1: Can I purchase a single drawer as a spare part without buying the whole panel?

A: Yes. Lugao Power Co., Ltd. sells individual intelligent drawers. We can manufacture a matching spare drawer according to the original drawing, drawer label, circuit configuration and component model. Final compatibility should be confirmed during the technical review stage.

Q2: Does the Intelligent Power Distribution Drawer-Type Panel Switchgear support remote reset after a fault?

A: Yes, via the communication module. The operator can remotely disconnect, diagnose the fault, and reconnect (if allowed by local safety codes). However, manual inspection is still recommended for short-circuit trips.

Q3: What is the maximum number of drawers per panel for your product?

A: For 160A drawers, we can install up to 24 units in a 2200mm high panel. For 630A drawers, maximum 12 units. The layout follows Form 4b separation, meaning each drawer is fully isolated in its own metal compartment.

Q4: Do you provide installation and commissioning service?

A: We provide remote video commissioning as standard. Optional: On-site commissioning by Lugao engineers (travel expenses + daily rate, 1-year warranty extension included).*

Q5: Can you integrate third-party breakers like Mitsubishi or LS?

A: Absolutely. The drawer chassis is designed to accept most major brands: ABB Tmax/Sace, Schneider NSX/MTZ, Siemens 3VA/3WL, CHINT, and others. Just specify the breaker model when you purchase.

After-Sales Service & Warranty

Warranty Period: 12 months (1 year) from the date of shipment.

During this period, Lugao Power Co., Ltd. covers any manufacturing defects, including drawer mechanisms, intelligent controllers, and communication modules. Consumables (lights, fuses) are excluded.
